JOEST SUE 1220 X 2450

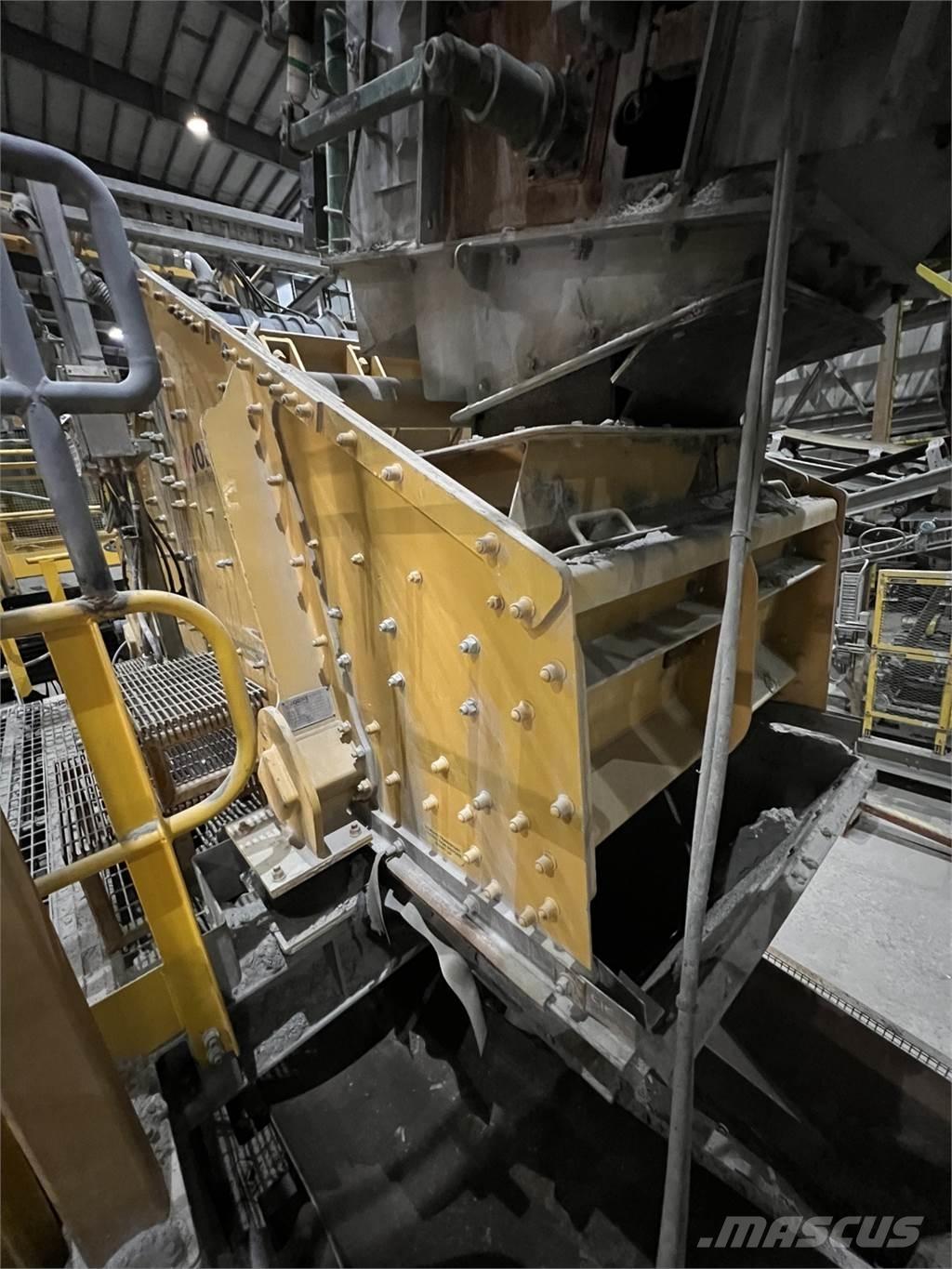

2016 Joest SUE 1220 X 2450 Vibrating Screen w/ 2 x 6.0 kW Drive JVC 288-1750 – Processing Equipment Dewatering/Screening/Scrubbers Title: Vibrating Screen SUE 1220 X 2450 w/ 2 x 6.0 kW Drive JVC 288-1750 SKU: 137911 Model: SUE 1220 X 2450 Year: 2016 Condition: Used [PDF MANUAL](... General Arrangement](... Secondary screen Trough Material: AS/NZS 3678-250 steel Oscillating Weight: 3390 kg Amplitude: 4.5 mm (9.0 mm stroke) Operating Frequency: 15 Hz Screen dimensions: - Width: 4 ft // 1220 mm - Length: 8 ft // 2450 mm Conveying Capacity: 88 tph max. Particle Size: 100 mm Temperature: Ambient Vibrating Motors Type: JVC 288-1750 Electrical: 600 V, 60 Hz, 3-ph Output: 2 x 6.0 kW Speed: 880 rpm Torque: 1518.9 in-lbs Unbalance Adjustment: 90%
