Kubota BX231

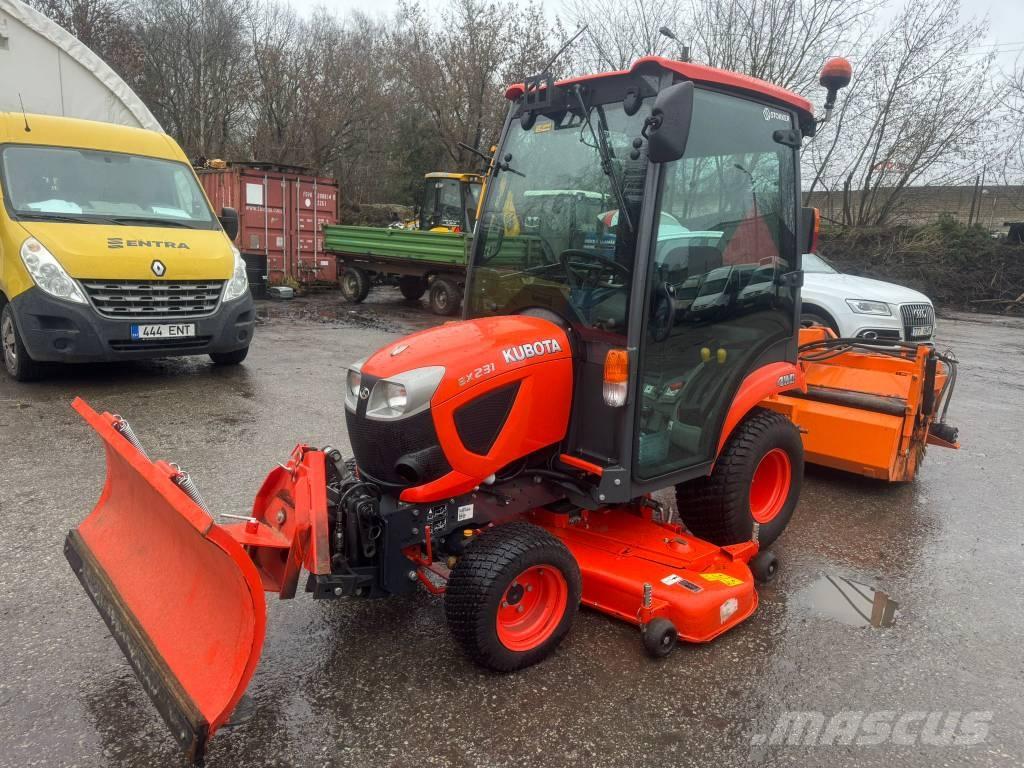

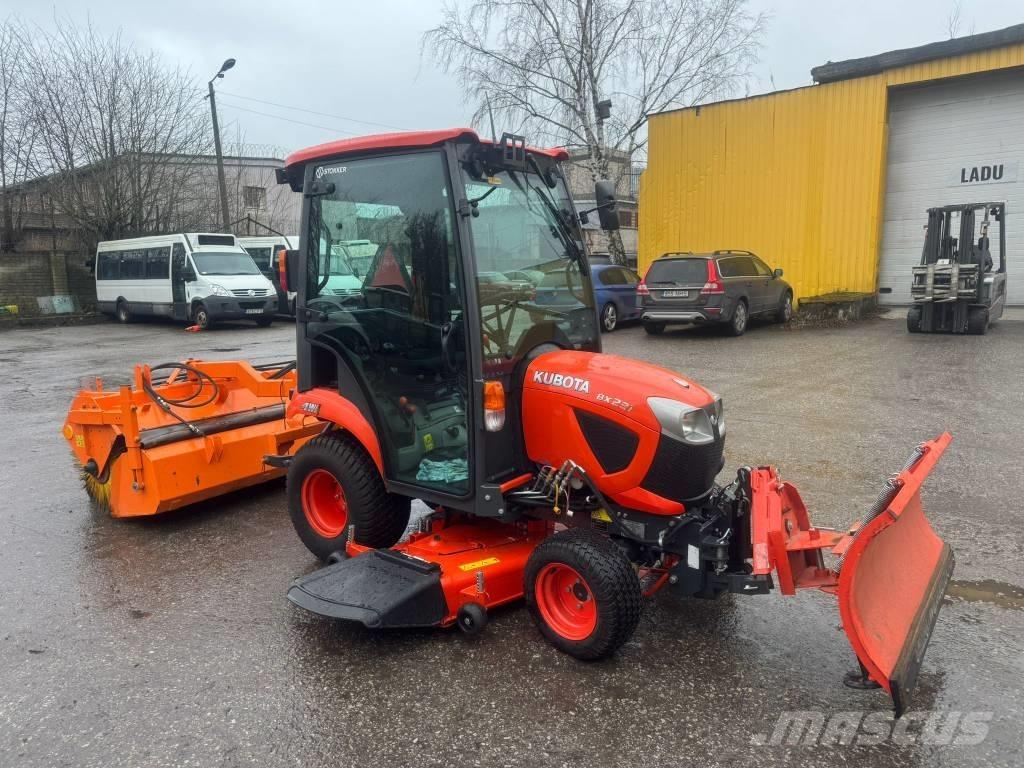

With grass-cutter (with new knife) Kubota RCK60-23BX-EU-F(113 kg), new snowpough 125 cm and sweeper (with hopper) SaMasz MOP 140H (300 kg). Engine type Kubota D902, diesel, liquid-cooled Number of cylinders 3 Displacement 898 cm3 Maximum power 15.9 (21.62) kW (HP) Maximum power on PTO 13.2 (17.9) kW (HP) Rated speed 3,200 rpm Maximum torque 56.1 Nm Air filter 1-stage, paper insert Fuel tank capacity 25 l TRANSMISSION Gearbox type hydrostatic Number of speed groups 2 Machine drive 4 x 4 Differential lock yes Disc brakes in oil bath Steering hydraulic Maximum travel speed (depending on tires) 14 km/h POWER TAKE-OFFS (PTO) Type dependent on engine speed Rear PTO 540 Intermediate PTO 2,500 Front PTO on request 2,000 Possibility of using all PTOs simultaneously yes HYDRAULICS Total hydraulic pump output 23.5 l/min Maximum operating pressure 125 kg/cm2 Rear 3-point hitch category cat. I Rear 3-point hitch regulation position control Maximum lifting capacity/power at the end of the booms 539/304 kg Lift control mechanical with automatic cut-off in maximum position Lowering speed regulation yes Boom position lock for transport yes External hydraulic circuits front/rear 2/2 DIMENSIONS Total length 22,575 mm Total width 1,155 mm Total height 1975 mm Front track 930 mm Rear track 820 mm Wheelbase 1,400 mm Minimum ground clearance (depending on tires) 166 mm Inner turning diameter 2.3 m Standard front tires 18 × 8.5–10 Standard rear tires 26 × 12.00–12 WEIGHT Operating weight 900 kg Maximum weight 1,400 kg Maximum front axle load 630 kg Maximum rear axle load 960 kg
