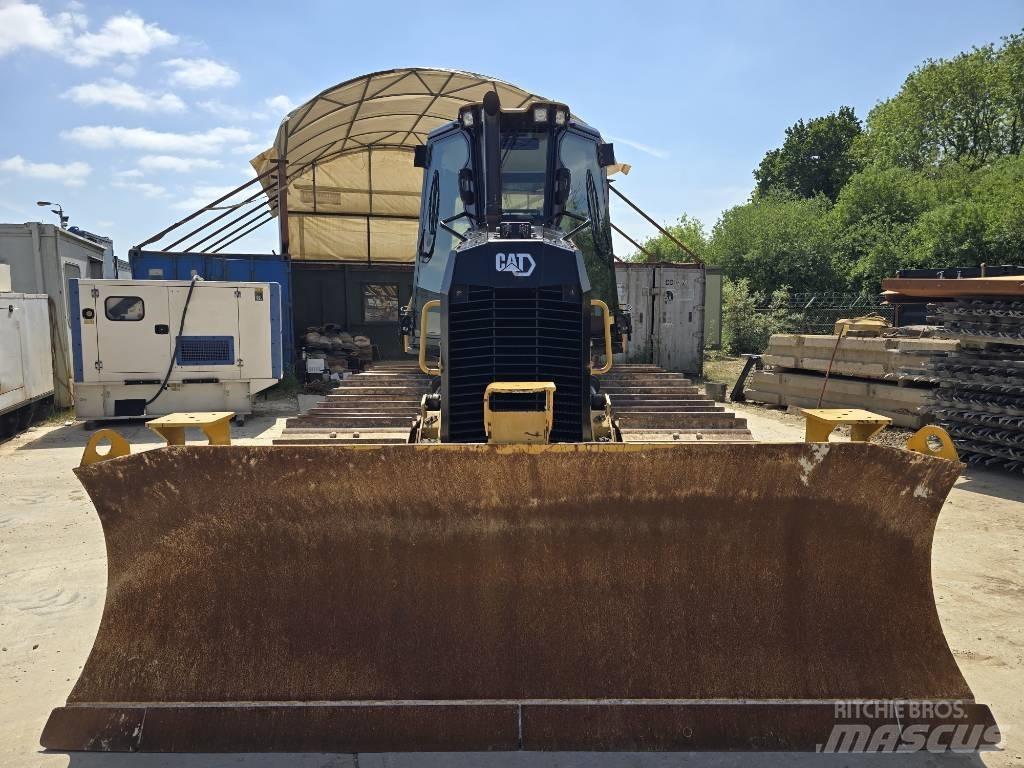

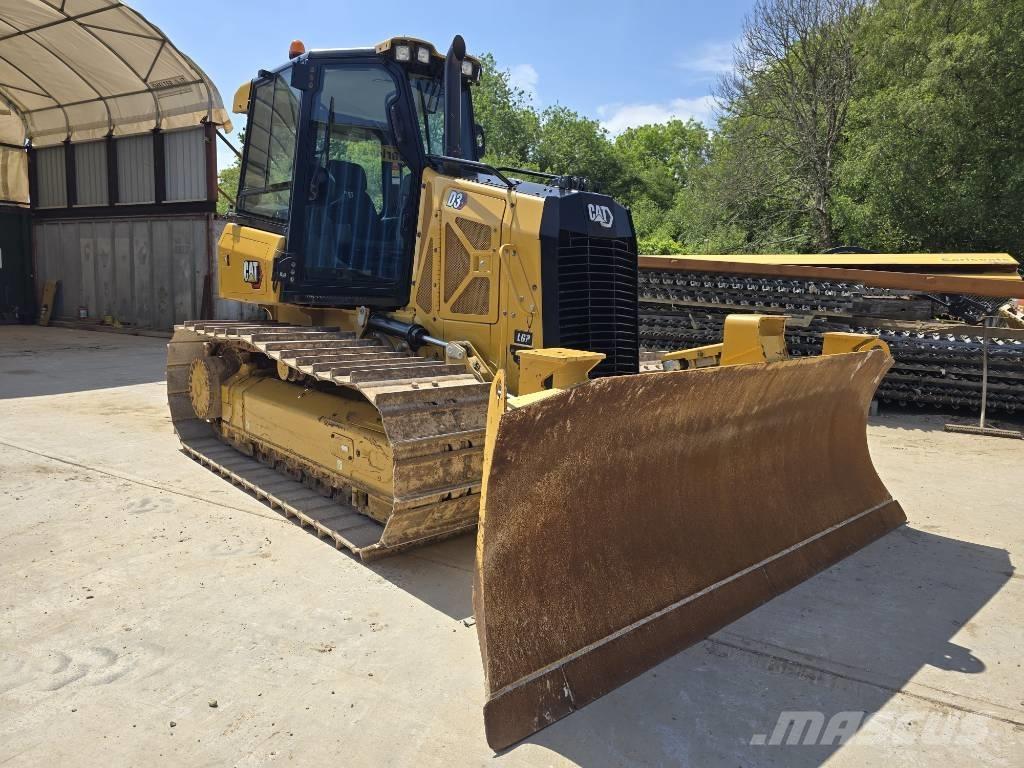

CAT D 3 LGP

For the full inspection please visit our website. UNDERCARRIAGE Shoe width 660mm Shoe height 50mm, 95% Shoes - any wear in trailing edge? Minimal Rail height 100mm, 75% Any signs of link failure No Average diameter of pins and bushings 55mm, 75% Have pins been turned on chains? No Sprockets 75mm gape, 15mm tips IDLERS - UNDERCARRIAGE Left side front idler 50mm x 20mm, 75% Right side front idler 50mm x 20mm, 75% TOP ROLLERS - UNDERCARRIAGE Left side top roller 143mm x 141mm, 60% Right side top roller 143mm x 140mm, 60% BOTTOM ROLLERS - UNDERCARRIAGE Roller 1 156mm x 153mm, 40% Roller 2 156mm x 155mm, 40% Roller 3 156mm x 152mm, 40% Roller 4 155mm x 151mm, 40% Roller 5 160mm x 148mm, 40% Roller 6 Visual only, 40% Roller 7 Visual only, 40%
