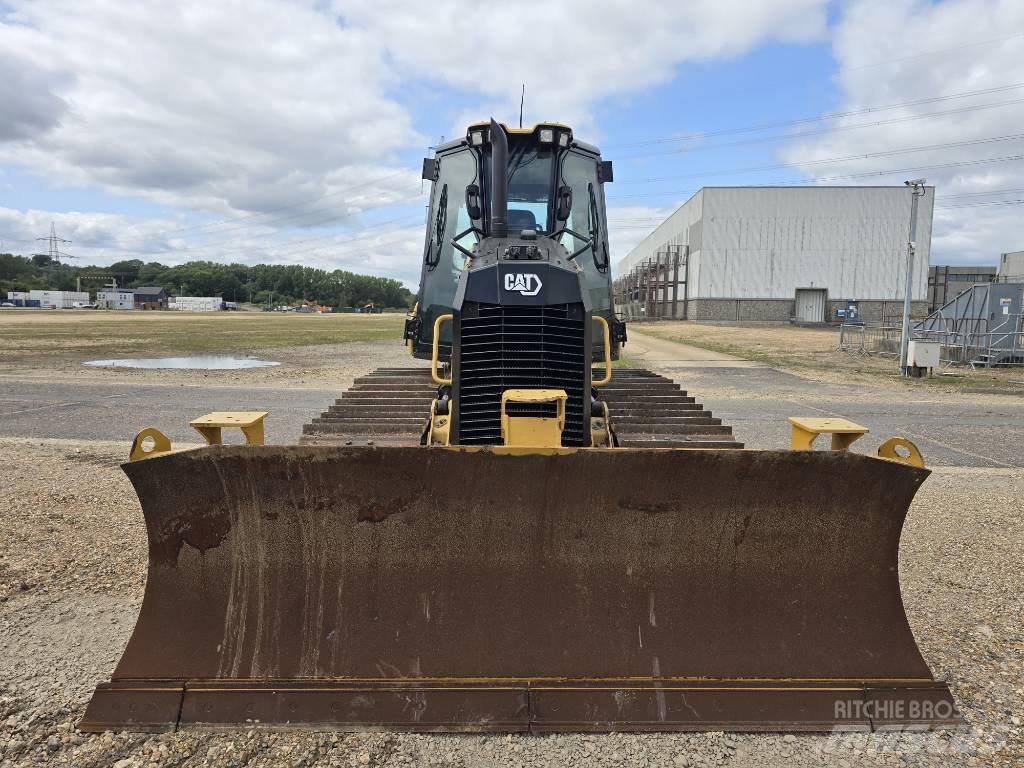

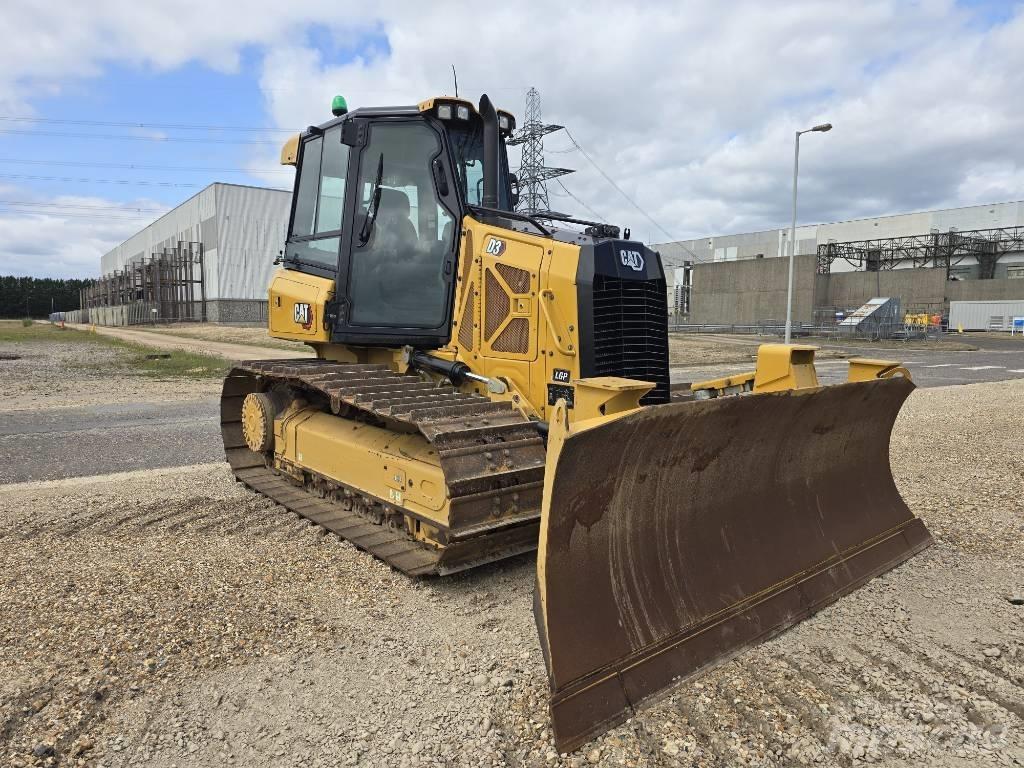

CAT D 3 LGP

For the full inspection please visit our website. UNDERCARRIAGE Shoe width 660mm Shoe height 55mm, 95% Shoes - any wear in trailing edge Minimal Rail height 100mm, 75% Any signs of link failure? No Average diameter of pins and bushings 56mm, 75% Have pins been turned on chains? No Sprockets 80mm gape, 15 - 16mm tips IDLERS - UNDERCARRIAGE Left side front idler 50mm x 20mm, 75% Right side front idler 50mm x 20mm, 75% TOP ROLLERS - UNDERCARRIAGES Left side top roller 153mm x 153mm, 90% Right side top roller 143mm x 143mm, 60% BOTTOM ROLLERS - UNDERCARRIAGE Roller 1 157mm x 161mm, 60% Roller 2 161mm x 162mm, 60% Roller 3 161mm x 165mm, 60% Roller 4 161mm x 163mm, 60% Roller 5 161mm x 162mm, 60% Roller 6 Visual only, 60% Roller 7 Visual only, 60%
