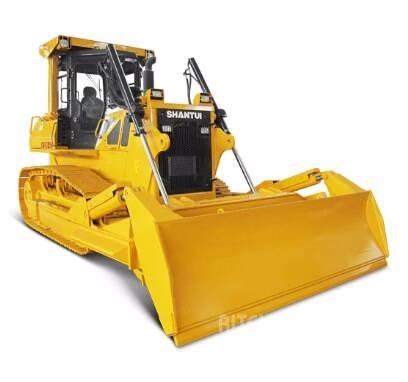

Shantui STR20-5

Prix (hors TVA)

Prix non renseigné

FavoriteFavoris
sharePartager
Save searchSauvegarder la recherche
Imprimer

INFO

Catégorie
Bouteurs sur chenilles
Marque / Modèle
Shantui STR20-5
Année d'immatriculation
2018
Options supplémentaires
Neuf
Emplacement
Jining, Shandong, China
Pays
Chine
Note globale
1
2
3
4
5
Mascus ID
B6E0DAFF

CARACTÉRISTIQUES

N° de stock
STR20-5
Dernière révision
yes
Contrat d’entretien
Oui
Largeur utile
340 cm
N° de série
STR20-5
Poids brut
21 000 kg
Train
À chenilles
Catégorie d'émission
Stage II
Type de cabine
Cabine fermée
Moteur
Weichai WD12
Rendement moteur
149 kW (203 CV)
Largeur de chenille
560 mm
Transmission
Shantui
Dimensions du volume de transport (L x l x H)
6500 x 3400 x 3070 mm
Couleur d'origine
yellow
Marque de pneu
Shantui
Informations / condition de Garantie
ISO9001
État neuf pneus avant
100
Pays de production
Chine
Equipé pour
propertynames.pp_equippedfor_2100011
Conditions de livraison
FOB, CFR, CIF, EXW
Certificats
EPA, CE, ANSI
Accessoires
Treuil
Climatisation
Autres appareils hydrauliques
Ripper multi-dents
Plus de critères
Autres informations
Technical Features ● It’s equipped with Weichai WD12 engine and three-stage air filter and is additional fitted with anti-scalding device, featuring higher efficiency and better energy-saving. ● The imported bearings for the transmission and main drive and the friction plates of higher skid and wear resistance and better anti-pollution capacity are adopted to achieve more excellent operating performances of the trimming bulldozer. ● The cooling system adopts enlarged water tank and straight-through type core. The three-point (up and down) shock-absorbing installation for the radiator features higher stability. ● The lifting cylinder of the hydraulic system adopts the bushing cap structure, featuring convenient maintenances. ● The electric circuit design of the whole machine adopts the water-proof circuits and water-proof fuse case. It’s additionally fitted with oil temperature, oil pressure, and water temperature alarms and reversing alarm. ● The floating oil seals within the guide wheel, carrier roller, and track roller can prevent the ingress of dusts and the leakage of lubricating oil to guarantee the high durability. ● The working device is controlled directly by the valve stems, featuring high reliability, lightness, and rapidness, and the locking mechanism features easy and reliable operations. ● The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame. ● New cab features good sealing performance and low noise and the instruments are reasonably arranged to realize convenient and rapid operations. Performance Parameters Overall dimensions(mm) 6468×3352×3063 Operating weight (kg) 21000 Engine model WD12 Net power/rated speed (kW/rpm) 149/1950 Track plate width (mm) 510 Ground pressure(Mpa) 0.063 Blade width/height (mm) 3175/950Plus de critères
