Putzmeister M56-5

Prix (hors TVA)

Images39Videos1

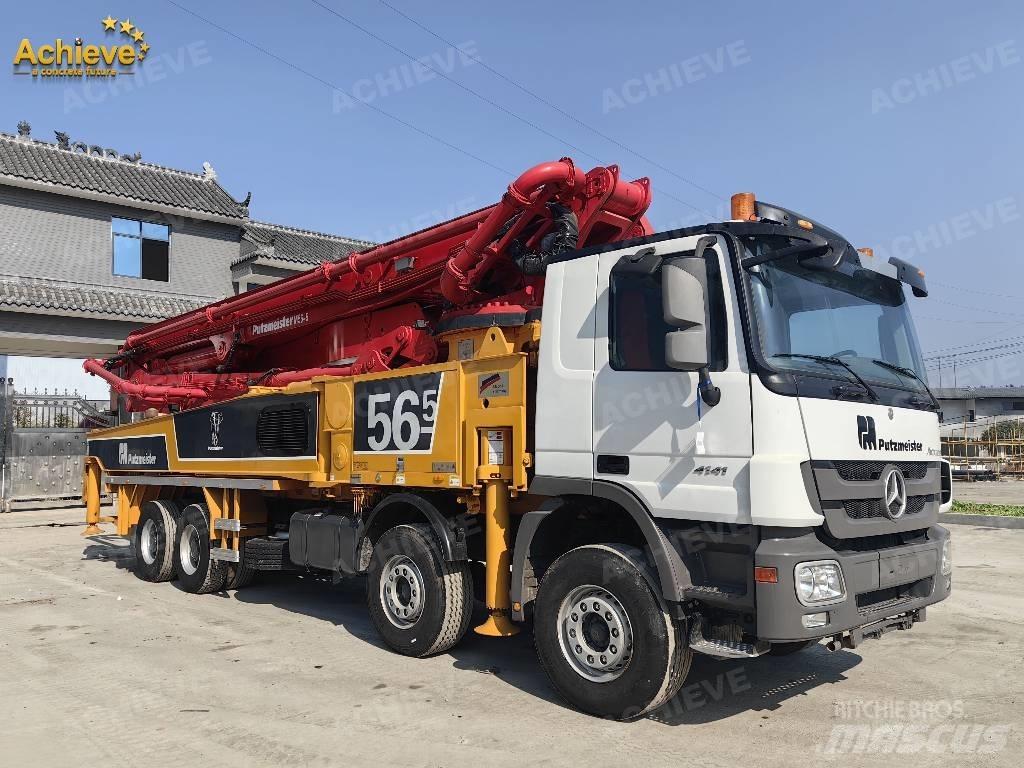

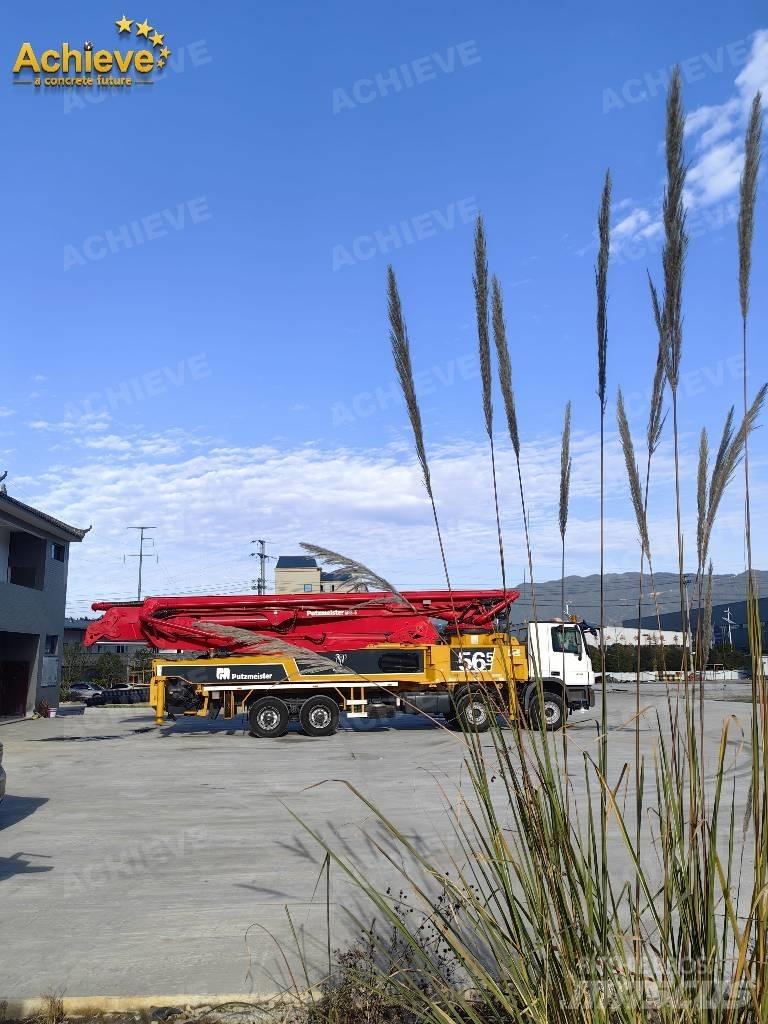

Putzmeister M56-5 Pompe à béton
Putzmeister M56-5 Pompe à béton
FavoriteFavoris
sharePartager
Save searchSauvegarder la recherche
Imprimer

INFO

Catégorie
Pompe à béton
Marque / Modèle
Putzmeister M56-5
Année d'immatriculation
2017
Heures d'utilisation
3 000 h
Etat / condition
Reconditionné,Remis à neuf
Pays
Chine
Note globale
1
2
3
4
5
Mascus ID
379C7292

PRIX

Choisir une devise

CARACTÉRISTIQUES

N° de stock
AICPT028
Nombre de sections de la flèche
5
Dernière révision
2024-09-26
Poids brut
32 000 kg
Longueur de flèche
300 cm
Déport horizontal maxi
4 990 cm
Portée verticale maximale
5 510 cm
Déplacement
Statique
Pompe à force:
Diesel
Débit de la pompe
300 kW
Dimensions du volume de transport (L x l x H)
14100 x 2500 x 4000 mm
Catégorie d'émission
Stage V
Fabricant Moteur
Ergonic3. EU Version
Type de pompe
Piston
Fabricant du châssis
Mercedes Benz
Marque de pneu
Mercedes Benz
Pays de production
Chine
Conditions de livraison
FOB, CIF
Certificats
EPA, CE, TÜV
Autres accessoires
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 55.1 m Horizontal Reach gross 49.9 m Horizontal Reach net 45.6 m Reach Depth 40.3 m Unfolding Height 15.6 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / 85 mm/bar Support width Standard (front-rear) 9.0 / 12.4 m Support width OSS (front-rear) 5.9 / 8.1 m Support width iSC (front/rear) 2.6-9 / 3-12.4 m Length x Width x Height 14.1 x 2.5 x 4 mm Configuration Concrete Pump .19 iLS Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 190 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 30
Autres informations
The Putzmeister M56-5 truck-mounted concrete pump is ideal for industrial or high-rise building projects which require large radius of distribution and high performance. The M56-5 is compact, reliable, easily manageable, and economical. As an option this truck-mounted concrete pump can be mounted on a 4 axle (for countries outside of Europe) or 5 axle chassis of various manufacturers. The new fully flexible outrigger gives you all the freedom you need when space on the construction site is tight again. Key Features Longlife design for tough jobs - industry leader with light steel design Maximum safety through closer consideration for current standards and guidelines Service-friendly as a result of its optimised accessibility and consistent bolted concept Minimal service costs thanks to maintenance-free components Longest steel boom on 4 axlesPlus de critères

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 Chine
