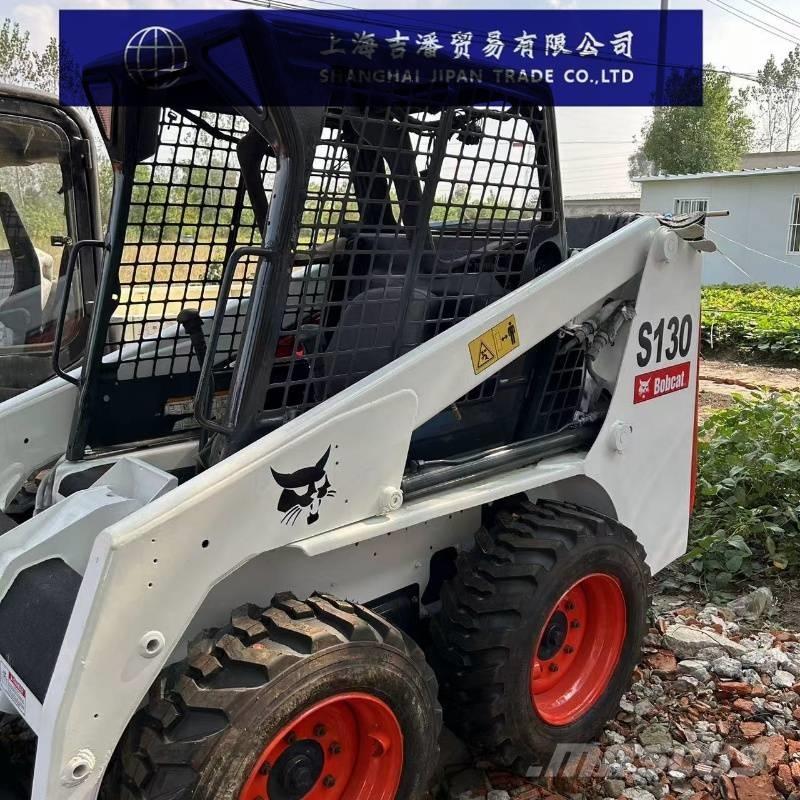

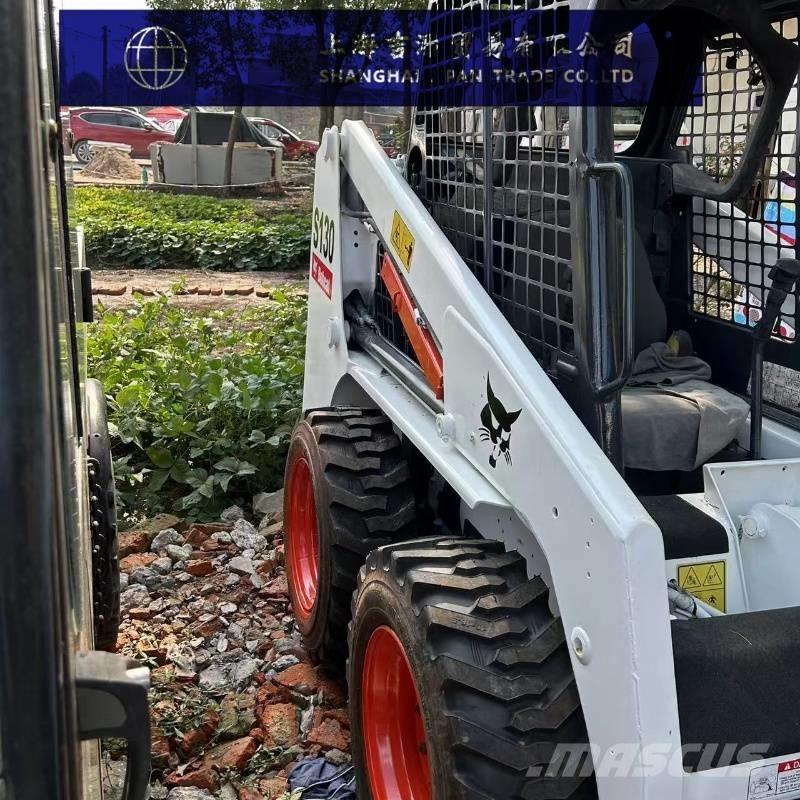

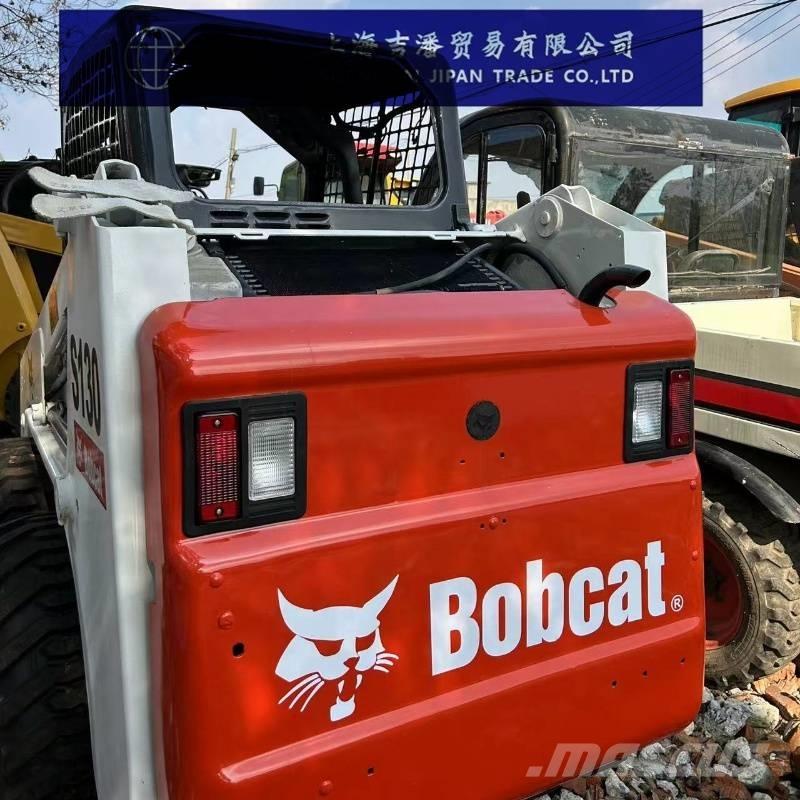

Bobcat S 130
Prix (hors TVA)
Imprimer
INFO
Catégorie
Chargeuse compacte
Marque / Modèle
Bobcat S 130
Année d'immatriculation
2021
Heures d'utilisation
1 865 h
Pays
Chine
Note globale
1
2
3
4
5
Mascus ID
D28C3A46
PRIX
Choisir une devise
CARACTÉRISTIQUES
Type
Diesel
Dernière révision
2025-08-25
Condition du train de roulement
98%
Nombre de propriétaires précédents
1
Poids brut
2 465 kg
Max. capacité de levage
6 000 kg
Type de carrosserie
Châssis fixe
Type de cabine
Cabine fermée
Catégorie d'émission
Stage V
Moteur
original
Capacité du godet
0,50 m3
Rendement moteur
34,3 kW (46,6 CV)
Fabricant Moteur
original
Dimensions du volume de transport (L x l x H)
3152 x 1490 x 1964 mm
Couleur d'origine
original
Type de transporteur
À roues
Informations / condition de Garantie
1 year
État neuf pneus avant
98%
État neuf pneus arrière
2
Taille des pneus arrière
original
Taille du pneu avant
original
Conditions de livraison
FCA, FOB, CIF, EXW
Certificats
EPA, CE
Autres accessoires
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Nina
Whatsapp: +86 18055199047
Mobile:+86 18055199047
Wechat:18055199047
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs
Accessoires
Climatisation
Commande joystick
Autres informations
Basic Performance:
Rated Operating Capacity: 597kg
Tipping Load: 1195kg
Operating Weight: 2465kg
Lift Arm Type: Radial lift
Engine:
Model: Kubota V2203-M-DI-E2B-BC-3
Rated Power: 34.3kW at 2400rpm
Maximum Torque: 150N·m/rpm
Displacement: 2.2L
Number of Cylinders: 4
Mobility:
Maximum Travel Speed: 11.8km/h
Tire Size: 10×16.5
Front Turning Radius (with bucket): 1745mm
Departure Angle: 23°
Hydraulic System:
System Relief Pressure: 182.7–189.6bar
System Rated Flow: 64L/min
Fluid Capacities:
Fuel Tank: 50.3L
Working Range:
Maximum Dump Height: 2100mm
Dump Reach (at maximum height): 575mm
Maximum Height of Bucket Hinge Pin: 2781mm
Dump Angle at Maximum Dump Height: 40°
Bucket Roll-back Angle on Ground: 25°
Bucket Roll-back Angle at Maximum Height: 96°
Overall Dimensions:
Overall Length (without attachment): 2432mm
Overall Length (with bucket): 3152mm
Overall Width (tire edge): 1490mm
Overall Height (to top of cab): 1964mm
Wheelbase: 900mm
Minimum Ground Clearance: 188mm
