CAT 259 D

Prix (hors TVA)

Compnay LOGO
Images9

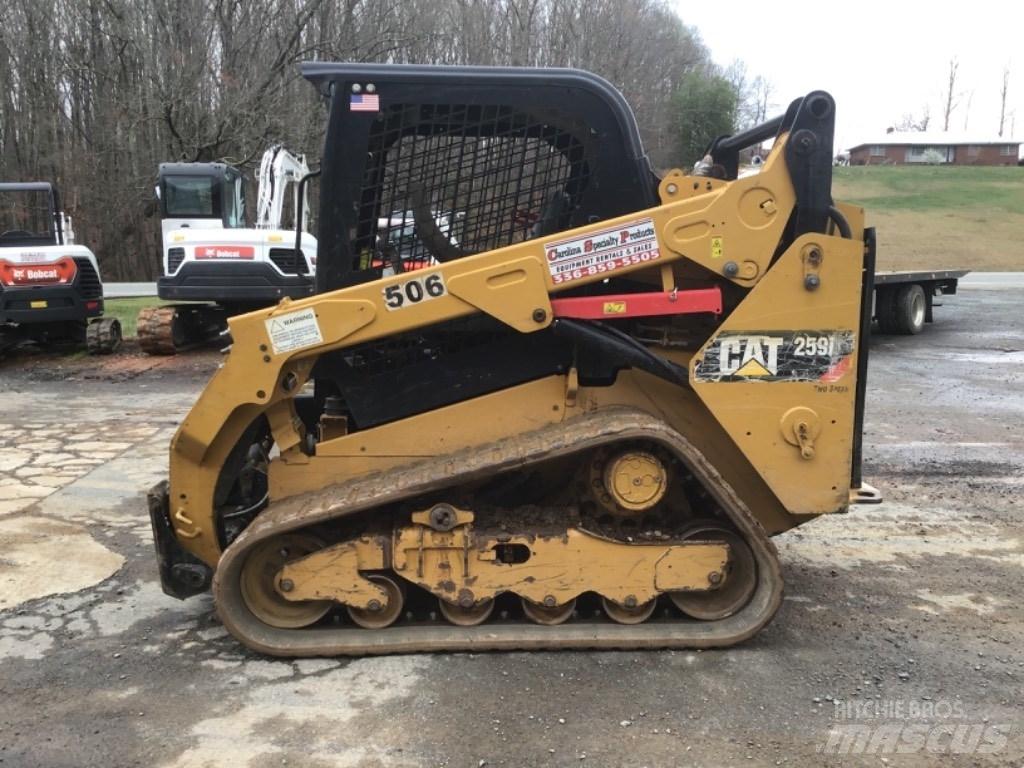

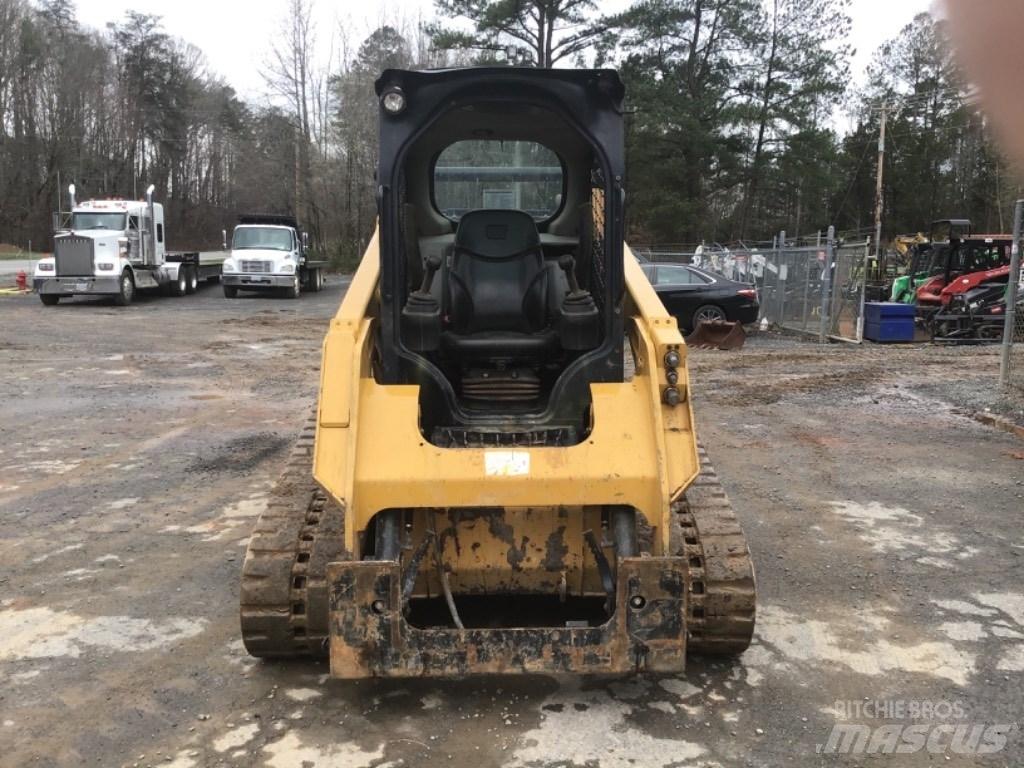

CAT 259 D Chargeuse compacte
CAT 259 D Chargeuse compacte
CAT 259 D Chargeuse compacte
FavoriteFavoris
sharePartager
Save searchSauvegarder la recherche
Imprimer

INFO

Catégorie
Chargeuse compacte
Marque / Modèle
CAT 259 D
Année d'immatriculation
2018
Heures d'utilisation
2 784 h
Emplacement
Denton, North Carolina
Pays
États-Unis
Note globale
1
2
3
4
5
Mascus ID
9F1B54AB

PRIX

Choisir une devise

CARACTÉRISTIQUES

N° de stock
16
N° de série
CAT0259DTFTL20047
Poids brut
4 013 kg
Max. capacité de levage
2 631 kg
Type de cabine
Cabine ouverte
Moteur
CAT 63.3B
Rendement moteur
53,8 kW (73,2 CV)
Fabricant Moteur
DIT
Vitesse maximale
13,8 km/h
Couleur d'origine
Yellow
Type de transporteur
À chenilles
Informations / condition de Garantie
In good working condition
Autres informations
C Height To Top Of Cab 6.93ft in E Ground Clearance 8.9in G Clearance At Max Lift And Dump 7.5ft in H Reach At Max Lift And Dump 2ft in Clearance At Maximum Lift And Dump 89.9in Departure Angle 35 degrees Dump Angle 52degrees Height - Top Of Cab 6.93ft in Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). Bucket Pin Height - Carry Position 7.8in Bucket Pin Height - Maximum Lift 10.09ft in Bucket Pin Reach - Maximum Lift 9.4in Turning Radius From Center - Machine Rear 61.5in Vehicle Width (320 Mm/12.6 In Tracks) 66in Vehicle Width (400 Mm/15.7 In Tracks) 69in Length - Track On Ground 59in Length - With Bucket On Ground 137.31in Length - Without Bucket 108.9in Length With Bucket 11.44ft in Length With Out Bucket 9.08ft in Maximum Dump Angle 52 degrees Maximum Overall Height 154.1in Maximum Reach - With Arms Parallel To Ground 51.4in Overall Height 12.85ft in Overall Length - Track 78.7in Overall Track Length 6.56ft in Rack Back Angle - Maximum Height 87 degrees Reach - Maximum Lift/Dump 23.9in Turning Radius From Center - Bucket 86in Turning Radius From Center - Coupler 54.8in Undercarriage D Length Of Track On Ground 11.44ft in Ground Pressure 5.97psi Ground Contact Area 1488.01in2 Specifications Engine Engine Make DIT Engine Model Cat C3.3B Gross Power 74.3hp Net Power 73.2hp Peak Torque 195.5lb ft Torque Measured 1500rpm Displacement 203cu in Bore 3.7in Stroke 4.7in Net Power - Iso 9249 73.9hp Gross Power - Sae J1995 74.3hp Engine Model Cat C3.3B DIT (turbo) Net Power - Sae 1349 73.2hp Peak Torque - 1,500 Rpm - Sae J1995 195lb ft Operational Operating Weight 8847.2lb Cooling System Fluid Capacity 3.7gal Fuel Capacity 27.8gal Engine Oil Capacity 3gal Hydraulic System Fluid Capacity 13.3gal Operating Voltage 12V Alternator Supplied Amperage 80amps Max Speed - Low Range 6mph Max Speed - High Range 8.6mph Power Train Travel Speed - Forward Or Reverse - One Speed 5.9mph Travel Speed - Forward Or Reverse - Two Speed 8.5mph Loader Breakout Force 5035.4lb Tipping Load 5800.4lb Operating Load 2899.1lb Weights Operating Weight 8945lbPlus de critères
