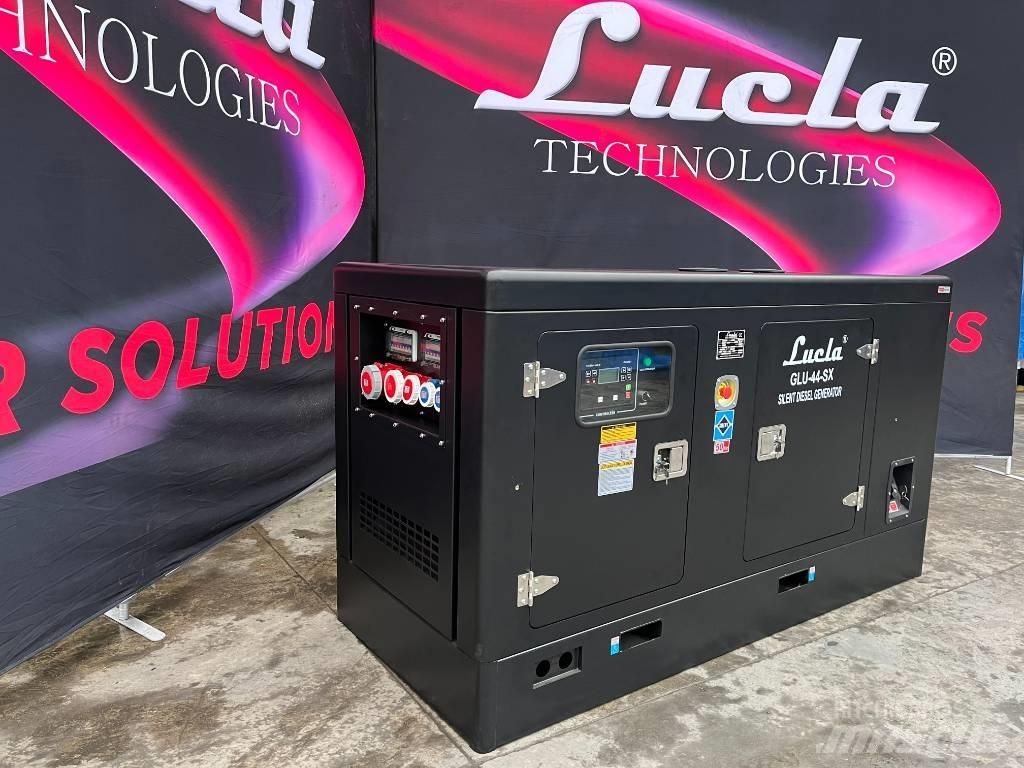

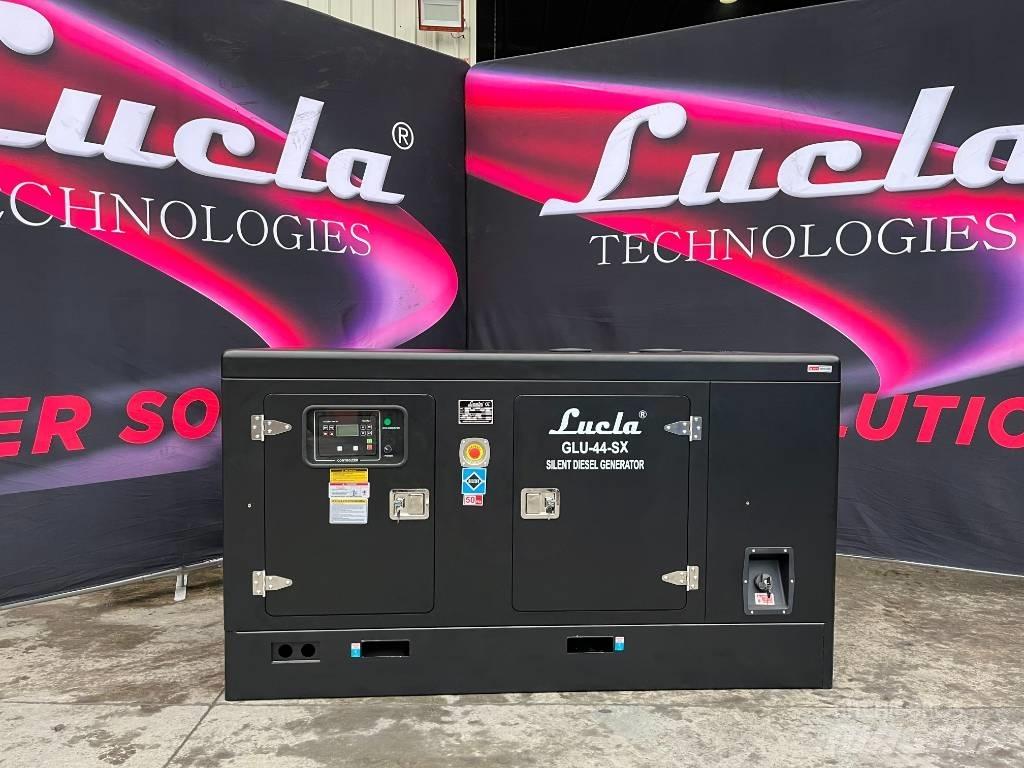

Lucla GLU-44-SX

Prix (hors TVA)

Prix non renseigné

FavoriteFavoris
sharePartager
Save searchSauvegarder la recherche
Imprimer

INFO

Catégorie
Générateurs diesel
Marque / Modèle
Lucla GLU-44-SX
Année d'immatriculation
2023
Options supplémentaires
Neuf
Emplacement
Ciutadella, Illes Balears
Pays
Espagne
Note globale
1
2
3
4
5
Mascus ID
7B2D8C40

CARACTÉRISTIQUES

N° de série
202301004008
N° de stock
GLU-44-SX
Moteur
A498BZD
Rendement moteur
39 kW (53,0 CV)
Output
44 kVA
Générateur
LU184
Fabricant Moteur
Xinchai
Fréquence
50 Hz
Tension
400 V
Volume du tank
120 l
Poids brut
921 kg
Dimensions du volume de transport (L x l x H)
2250 x 950 x 1250 mm
Informations / condition de Garantie
2 YEARS WARRANTY**
Conditions de livraison
DAP, DDP, FOB, EXW
Équipement
Citerne, Batterie, Panneau de commande
Certificats
CE
Autres accessoires
The bodywork is made with galvanized sheet.
Autres informations

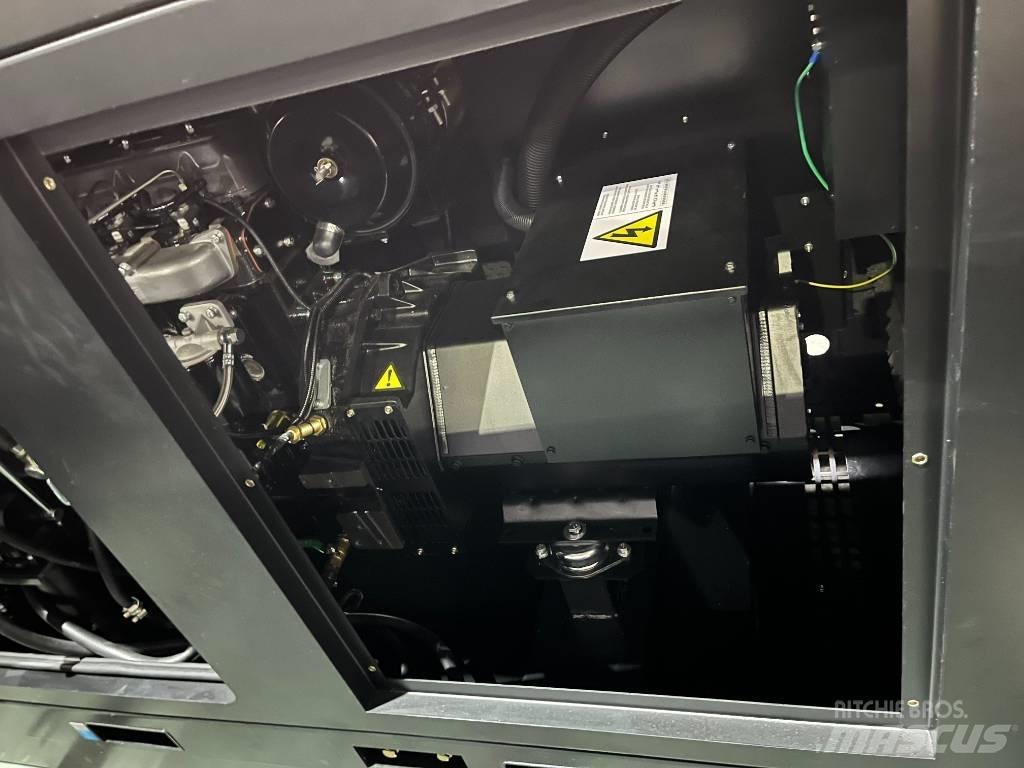

technical data: rated prime power 40 kva, rated standby power 44 kva, rated voltage line to line 230/400v, rated current 57.7 a, maximum sound level db(@7m) 78. engine -Xinchai model A498BZD, air intake system: turbocharged, fuel inyection system:direct inject, nº cylinders 4, displacement 3200, bore*stroke 98*105 mm, compression ratio 18:50, rated speed 1500 r/min, rated power 39kw, governor type electrical, start motor 12v. fuel system: 100%load (prime power) 8l/h, 75% load (prime power) 6 l/h, 50% load (prime power) 4.3 l/h, fuel tank capacity 120l. alternador – lucla model LU184 , phase 3, voltage 230/400v, wiring type 3 phase 12 wire , y type, bearing 1, power factor (cos ) 0.8, frequency 50 hz, prime power 40 kva, exciter type brushless, self excitation, voltage regulation ±0.5%, protection grade ip23, insulation grade h, altitude 1000. controler comap, intelilite 4 amf 25, protective functions: low oil pressure, high water temperature,high /low voltage, high engine temperature and overspeed, voltaje regulator frequency regulator, emergency stop, auto starting transferPlus de critères
