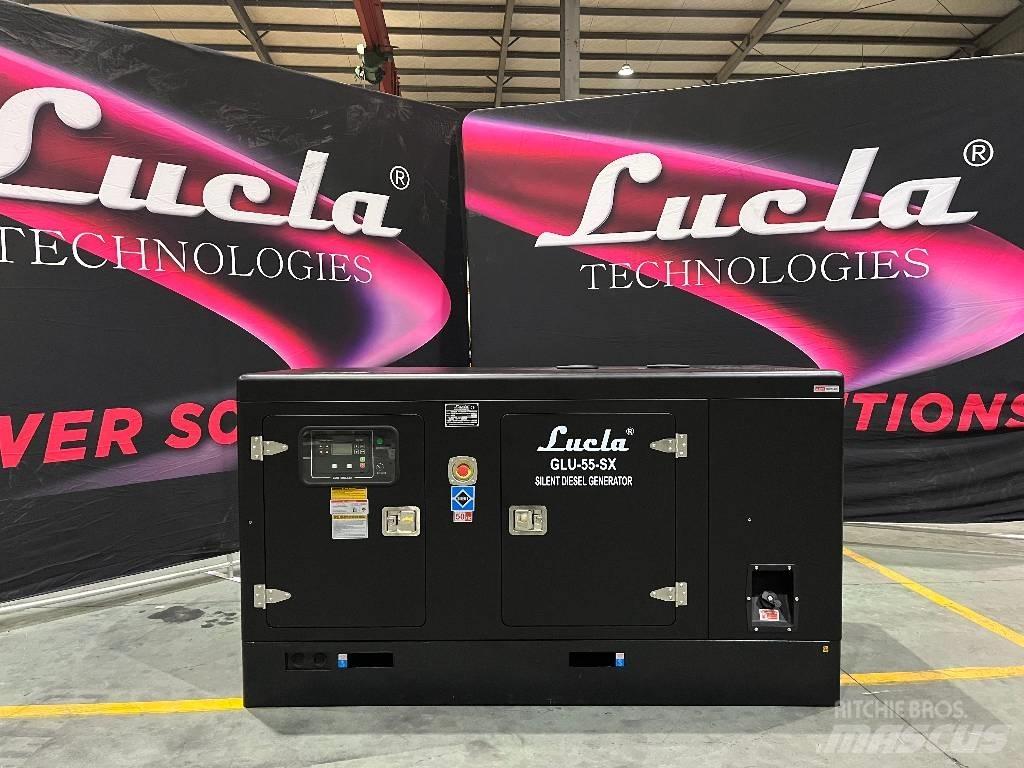

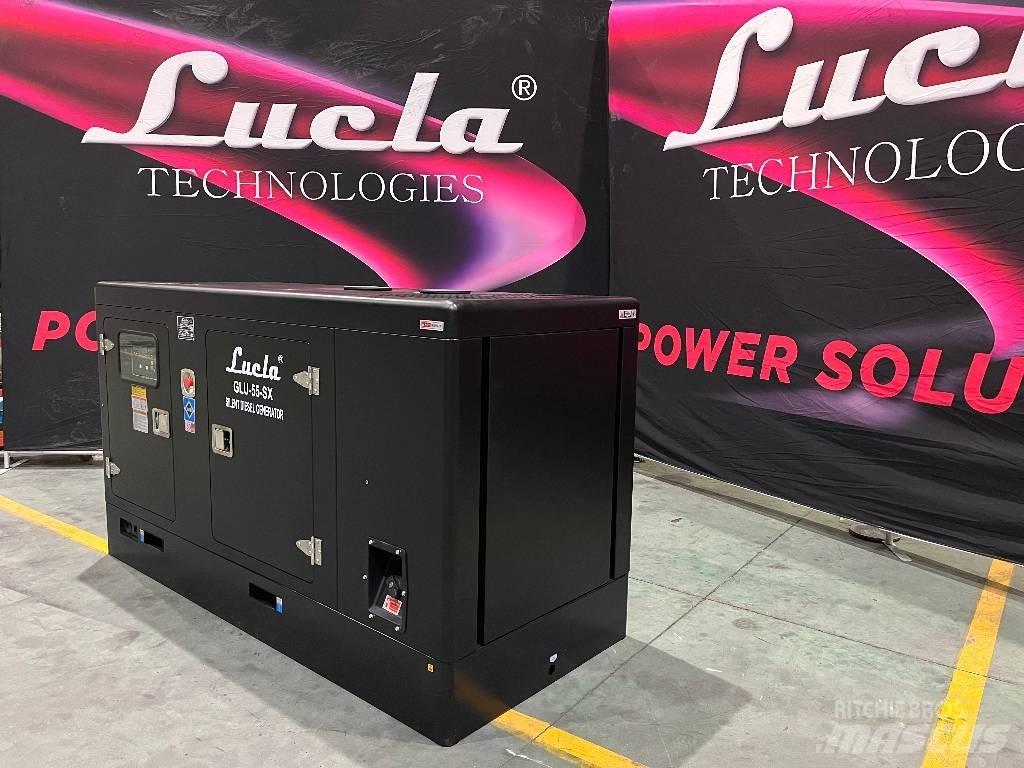

Lucla GLU-55-SX

The bodywork is made with galvanized sheet.

technical data: rated prime power 50 kva, rated standby power 55 kva, rated voltage line to line 230/400v, rated current 72.2 a, maximum sound level db(@7m) 78. engine -Xinchai model 4D35ZD, air intake system: turbocharged, fuel inyection system:direct inject, nº cylinders 4, displacement 3500, bore*stroke 98*115 mm, compression ratio 18:50, rated speed 1500 r/min, rated power 49kw, governor type electrical, start motor 12v. fuel system: 100%load (prime power) 10l/h, 75% load (prime power) 7.5 l/h, 50% load (prime power) 5 l/h, fuel tank capacity 120l. alternador – lucla model l224d tech, phase 3, voltage 230/400v, wiring type 3 phase 12 wire , y type, bearing 1, power factor (cos ) 0.8, frequency 50 hz, prime power 50 kva, exciter type brushless, self excitation, voltage regulation ±0.5%, protection grade ip23, insulation grade h, altitude 1000. controler comap, intelilite 4 amf 25, protective functions: low oil pressure, high water temperature,high /low voltage, high engine temperature and overspeed, voltaje regulator frequency regulator, emergency stop, auto starting transfer
