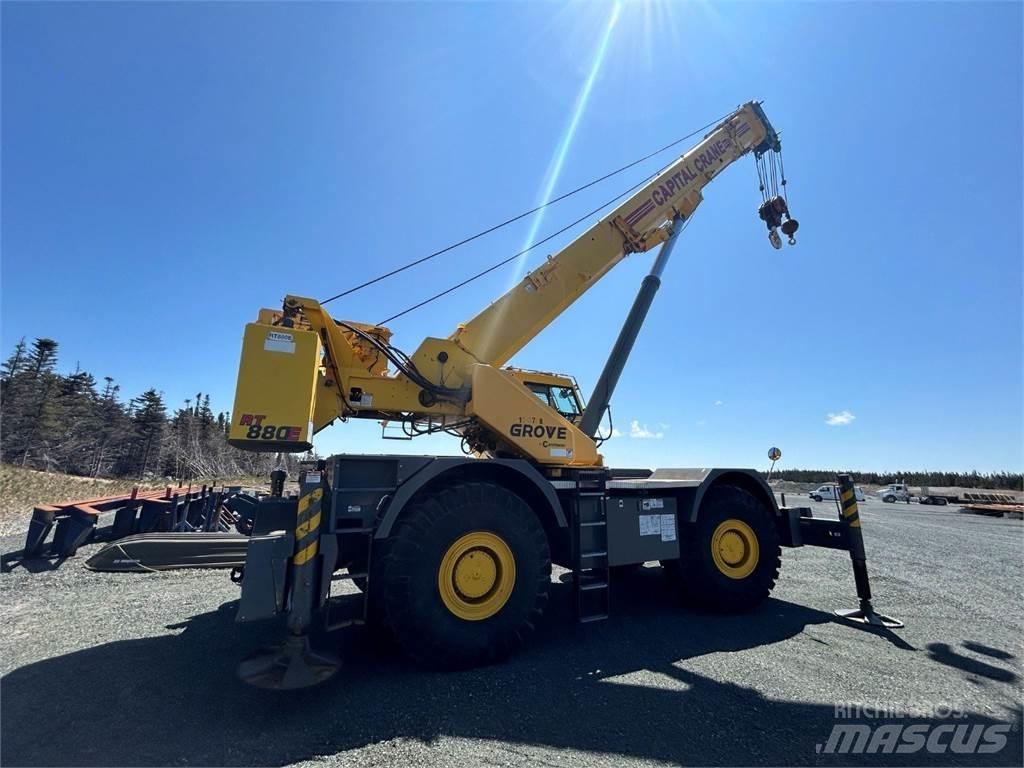

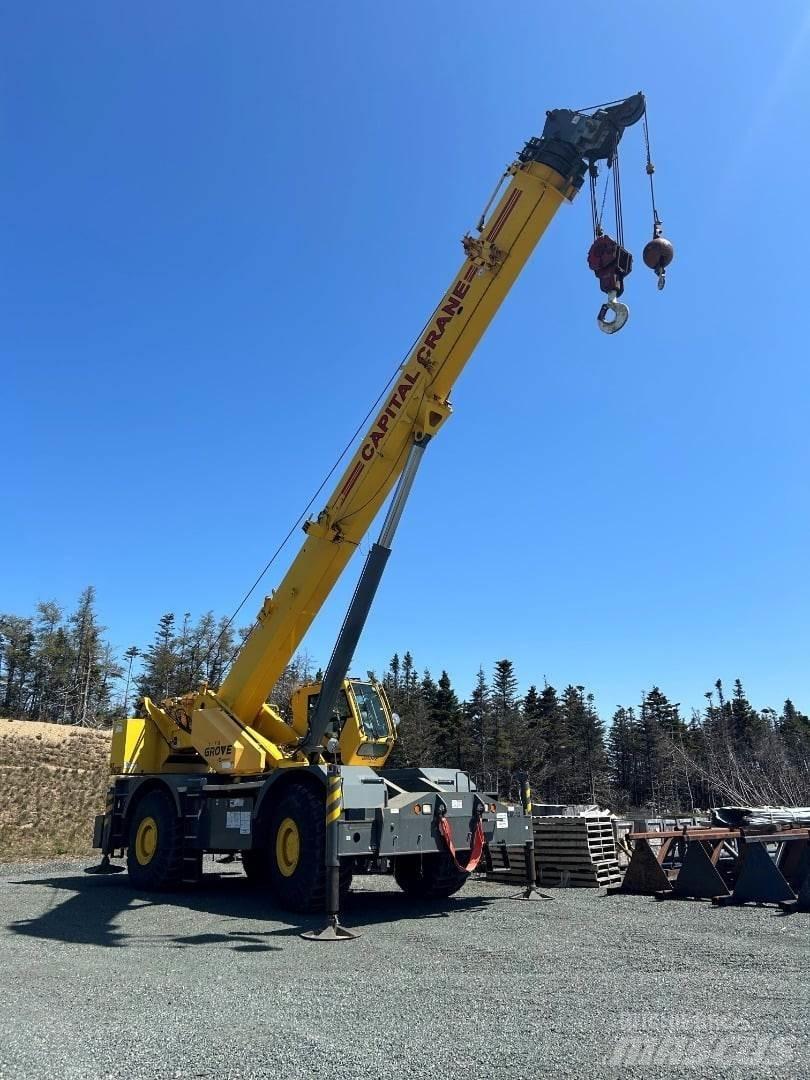

Grove RT880E

Prix (hors TVA)

Compnay LOGO
Images14
Grove RT880E Grues mobiles
Grove RT880E Grues mobiles
Grove RT880E Grues mobiles
FavoriteFavoris
sharePartager
Save searchSauvegarder la recherche
Imprimer

INFO

Catégorie
Grues mobiles
Marque / Modèle
Grove RT880E
Année d'immatriculation
2012

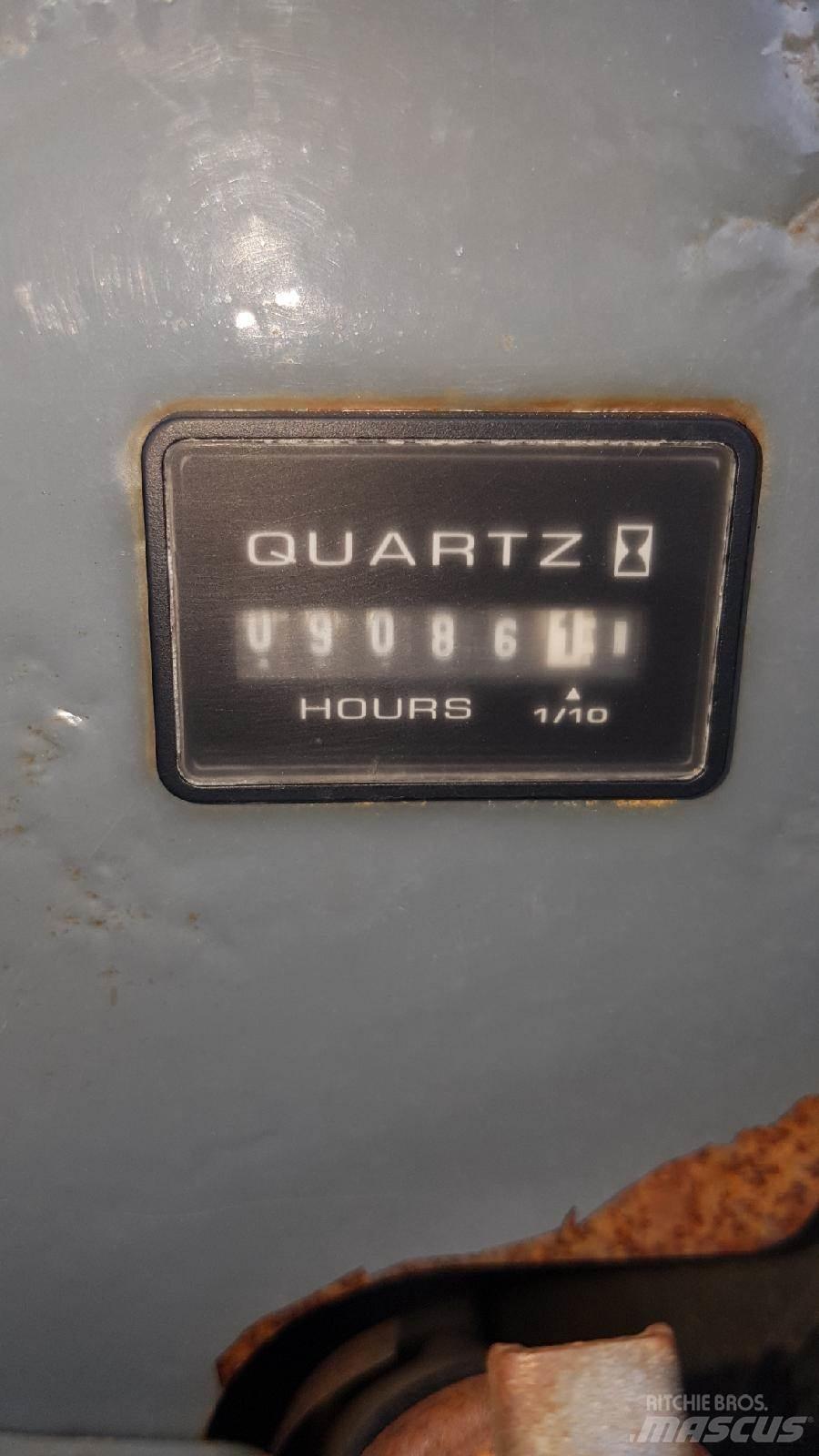

Heures d'utilisation
9 401 h
Emplacement
Mount Pearl, Newfoundland and Labrador
Pays
Canada
Note globale
1
2
3
4
5
Mascus ID
40E2E66F

PRIX

Choisir une devise

CARACTÉRISTIQUES

N° de stock
C80-12
N° de série
233797
Max. capacité de levage
80 000 kg
Autres accessoires
https://freecranespecs.com/Grove/RT880E
Autres informations
FOB Halifax, Nova Scotia BOOM: 41-128 ft. (12.6-39.0m) 4-section, sequenced synchronized full power MEGAFORM style boom with integral holding valves on the telescope cylinders. Four (4) quick reeve nylatron sheaves in the main boom nose. Auxiliary single sheave boom nose. BOOM ELEVATION: One double-acting hydraulic cylinder (-3° to +78°) with integral holding valve. BOOM EXTENSION: Includes 33-56 ft (10.1-17.lm) Manual offsettable bi-fold swingaway. LOAD MOMENT AND ANTI-TWO BLOCK SYSTEM ("Graphic LMI"): Audio­visual (light/buzzer) warning system and Grove control lever lockout system with electronic display of boom angle and length, relative load moment indication, rated load, load, radius and boom tip height. The standard Work Area Definition System allows the operator to pre-select and define safe working areas. If the crane approaches the pre-set limits, audio-visual warnings aid the operator in avoiding job-site obstructions. SWING: 360° continuous rotation planetary "Glide Swing" with foot actuated multi-disc brake, hydraulic swing parking brake, and plunger-type 2 position house lock and pinion guard. COUNTERWEIGHT: One piece 18,000 lb (8 165 kg), hydraulically installed and removed. HYDRAULIC SYSTEM:(]) piston pump and (1) gear pump, steel hydraulic tank with external sight level indicator, filter condition gauge, pressure check ports and hydraulic oil cooler. HOOK BLOCK: 80 ton (75 mt); 5 sheave, "quick reeve" type with swivel hook and safety latch. Wt. 1,318 lb. (598 kg)Plus de critères

Capital Cranes

20 Sagona Ave A1N 4R2 Mount Pearl Newfoundland and Labrador Canada
