Grove RT890E

Prix (hors TVA)

Compnay LOGO
Images10
Grove RT890E Grues mobiles
Grove RT890E Grues mobiles
Grove RT890E Grues mobiles
FavoriteFavoris
sharePartager
Save searchSauvegarder la recherche
Imprimer

INFO

Catégorie
Grues mobiles
Marque / Modèle
Grove RT890E
Année d'immatriculation
2011
Heures d'utilisation
5 492 h
Emplacement
Mount Pearl, Newfoundland and Labrador
Pays
Canada
Note globale
1
2
3
4
5
Mascus ID
60DBEDED

PRIX

Choisir une devise

CARACTÉRISTIQUES

N° de stock
C90-02
N° de série
231710
Max. capacité de levage
90 000 kg
Autres accessoires
https://freecranespecs.com/Grove/RT890E
Autres informations

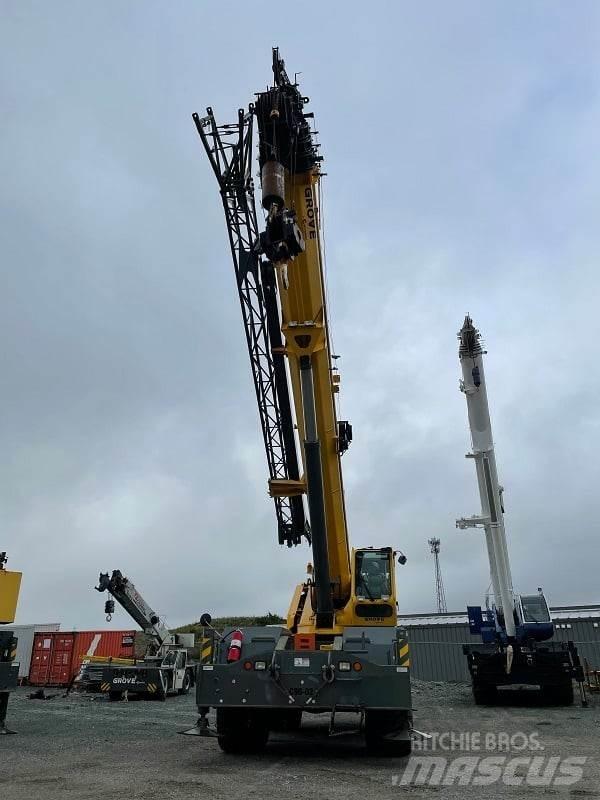

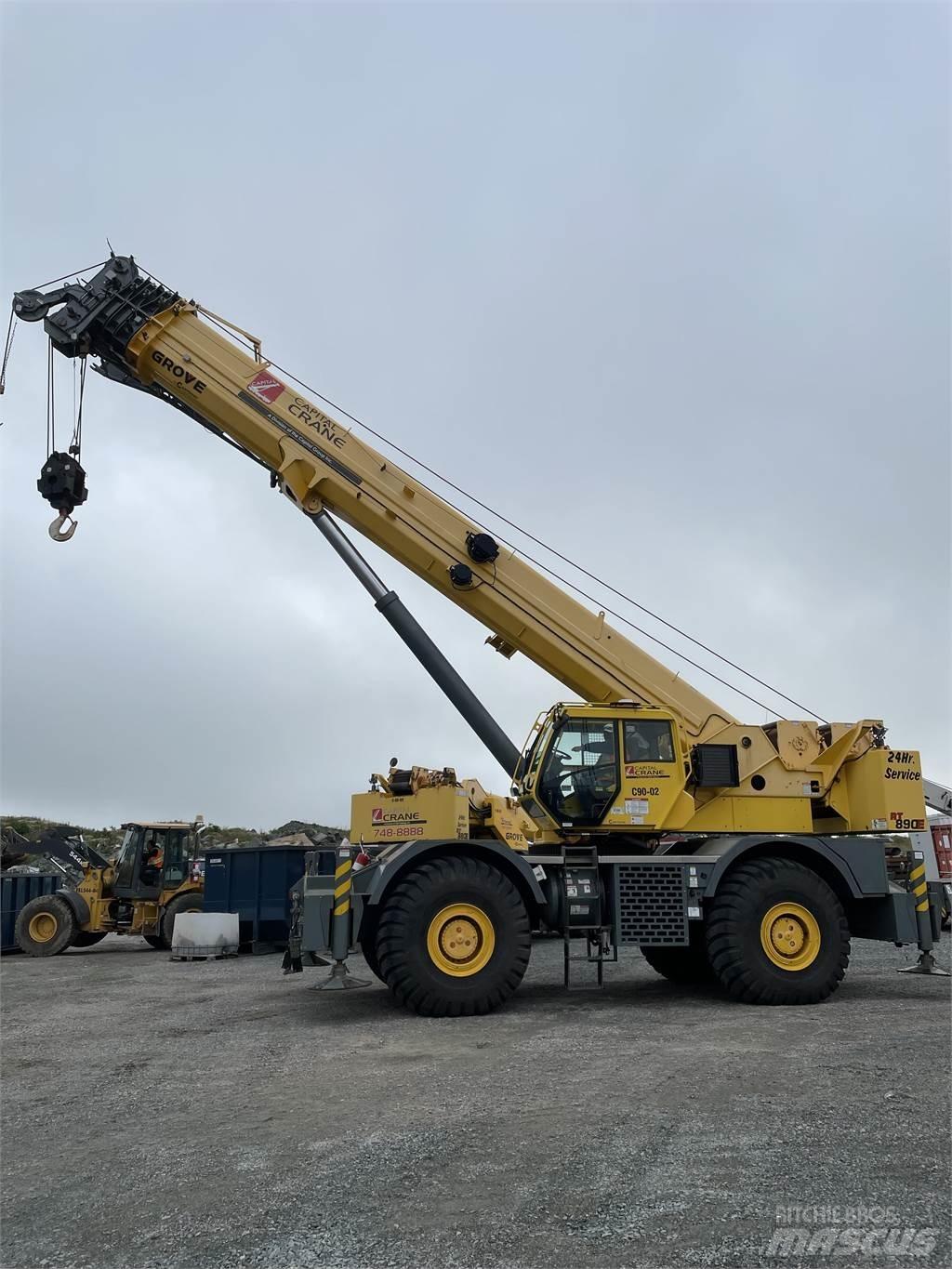

FOB Halifax, Nova Scotia 2011 Grove Model RT890E, SIN: 231710, 90-ton hydraulic rough terrain crane, with all standard equipment and including: BOOM: 38-142 ft. (11.6-43.3 m) 5-section, sequenced synchronized full power MEGAMEGAFORM style boom with integral holding valves on the telescope cylinders. Five (5) quick reeve nylatron sheaves in the main boom nose. Auxiliary single sheave boom nose. BOOM ELEVATION: One double-acting hydraulic cylinder (-3° to +78°) with integral holding valve. BOOM EXTENSION: 33 - 56 ft. (10.1 - 17.1 m) Manual offsettable bifold swingaway lattice extension with integral offset mechanism for o0, 20°, and 40°. LOAD MOMENT AND ANTI-TWO BLOCK SYSTEM ("Graphic LMI"): Audio­visual (light/buzzer) warning system and Grove control lever lockout system with electronic display of boom angle and length, relative load moment indication, rated load, load, radius and boom tip height. The standard Work Area Definition System allows the operator to pre-select and define safe working areas. If the crane approaches the pre-set limits, audio-visual warnings aid the operator in avoiding job-site obstructions. CAB: All galvanealed steel with acoustical lining and tinted safety glass throughout; cab tilts to 20° for greater comfort; deluxe seat with armrest mounted single-axis controllers, gauges for engine functions, steering wheel, electric horn, windshield washer/wiper, air conditioning, hot water cab heater with defroster, opening skylight with wiper, sunscreen, fire extinguisher, seat belt, circulating air fan, (2) cab mounted work lights, and level SWING: Two speed, 360° continuous rotation planetary "Glide Swing" with foot actuated multi-disc brake, hydraulic swing parking brake, and plunger-type 2 position house lock and pinion guard. COUNTERWEIGHT: One piece 22,000 lb (9,980 kg), hydraulically installed and removed. HYDRAULIC SYSTEM: (I) piston pump and (I) gear pump, steel hydraulic tank with external sight level indicator, filter condition gauge, pressure check ports and hydraulic oil cooler. HOISTS: Model HP30- l 9G grooved drum main hoist, two speeds power up and down with automatic multi-disc brake, electronic hoist rotation indicator, hoist drum cable follower and hoist mirror. WIRE ROPE: 600 ft. (182 m) of3/4 in. (19 mm) diameter 6 X 37 class installed on main hoist. HOOK BLOCK: 90 ton (80 mt); 5 sheave, "quick reeve" type with swivel hook and safety latch. Wt. 1,300 lb. (589 kg) HEADACHE BALL: 10 ton (9.1 mt) top swivel with hook and safety latch; Wt. 568 lb. (257 kg) OUTRIGGERS: Hydraulic front and rear. Double box and beam with integral check valves and steel outrigger pads, three position setting charts provided for fully extended, half extended and fully retracted beams. ENGINE: Cummins QSB6.7L (Tier IV) 6 cylinder turbo charged water cooled diesel; 275 ... rpm, torque - 732 ... 1500 rpm; with hour meter, air service indicator, (120 V) engine block heater, engine distress audio-visual warning system and Can-Bus diagnostics. TRANSMISSION: Powershift with integral torque converter, 6 forward and 6 reverse speeds. DRIVE/STEER: 4-wheel drive, 4 -wheel I 4 mode steering AXLE OSCILLATION: Front axle rigid mounted to chassis frame. Rear axle oscillates up to 10 in. (254 mm) with automatic oscillation lockout. BRAKES: Dual line full hydraulic braking system with front axle mounted spring applied parking brake. TIRES: 29.5 X 25 - 34 General bias ply type. LIGHTS: Full lighting package includes tum indicators, headlights, taillights, brake lights, 4-way hazard lights, and cab mounted work light. MISCELLANEOUS STANDARD EQUIPMENT: Hook block tie-down, -35°F anti­ freeze, backup alarm, dual rear view mirrors, front stowage well, towing/tie-down lugs, full length aluminum decking, rear wheel alignment indicator, and coolant sight level indicatorPlus de critères

Capital Cranes

20 Sagona Ave A1N 4R2 Mount Pearl Newfoundland and Labrador Canada
