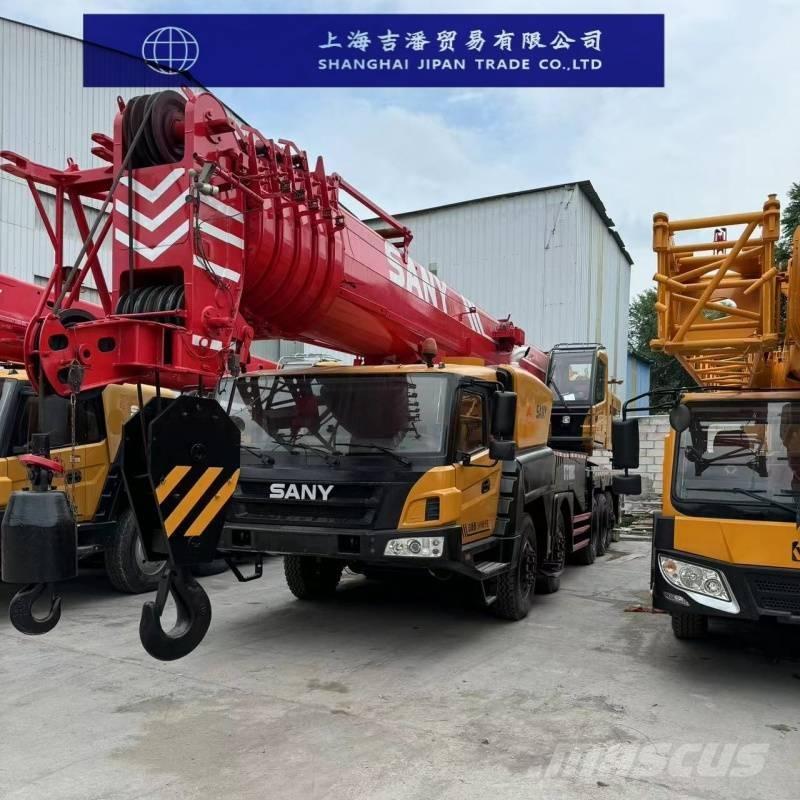

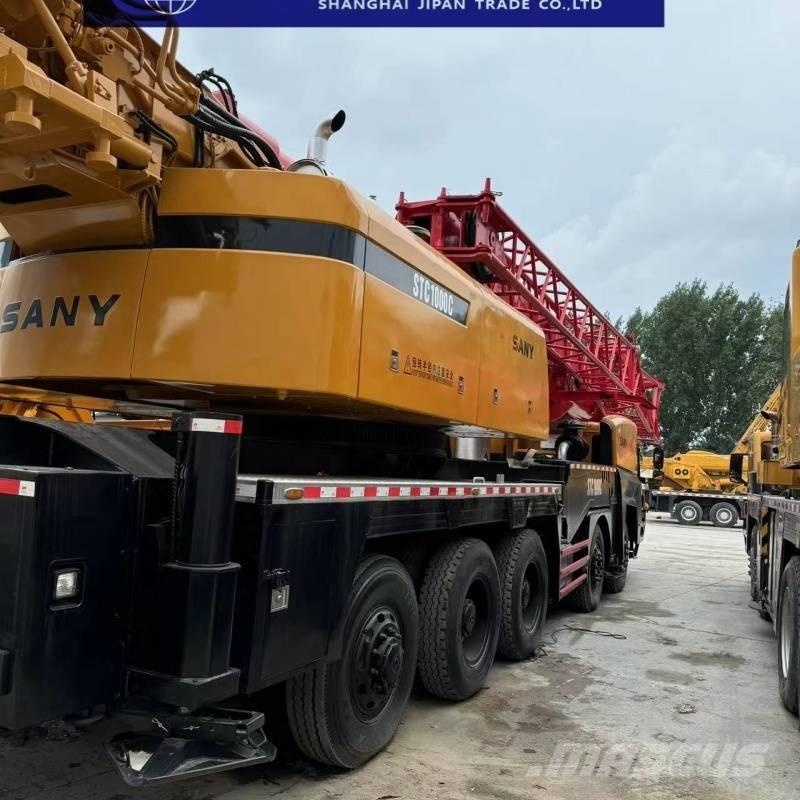

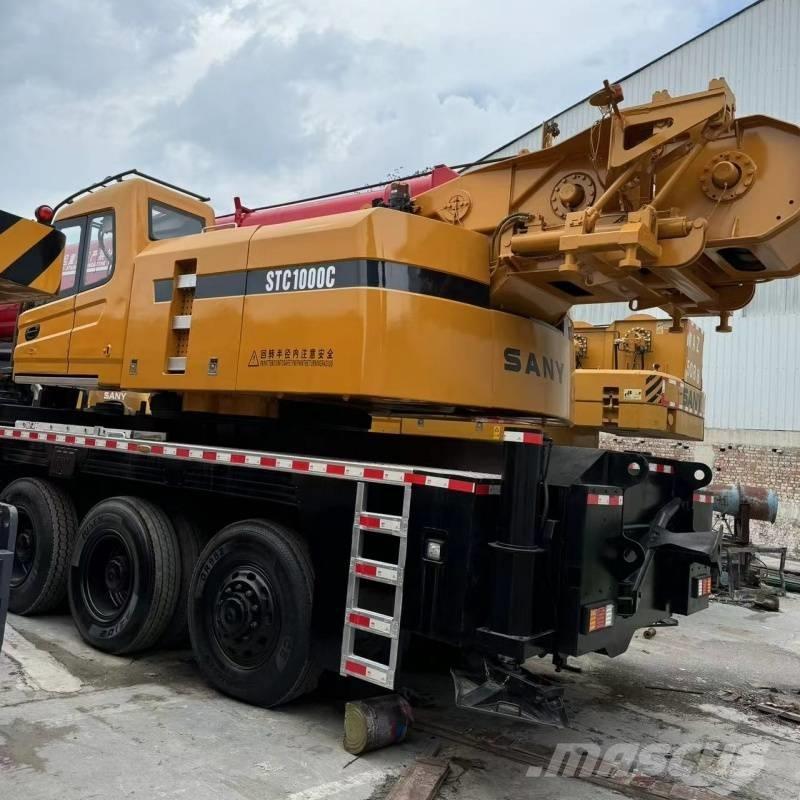

Sany SCT1000C
Prix (hors TVA)
4
Favoris
Partager
Sauvegarder la rechercheImprimer
INFO
Catégorie
Grues tout terrain
Marque / Modèle
Sany SCT1000C
Année d'immatriculation
2020
Heures d'utilisation
2 458 h
Pays
Chine
Note globale
1
2
3
4
5
Mascus ID
855F7C36
PRIX
Choisir une devise
CARACTÉRISTIQUES
Dernière révision
2025-10-23
Nombre de propriétaires précédents
1
Poids brut
54 950 kg
Max. capacité de levage
100 kg
Capacité maximale de levage en bout de flèche
100 kg
Longueur minimale de la flèche
1 500 cm
Catégorie d'émission
Stage V
Longueur de flèche
1 400 cm
Flèche de guindant minimale
1 400 cm
Unité de distance
1 400 cm
Longueur de flèche
1 500 cm
Hauteur de levage
7 810 cm
Hauteur sous crochet - flèche horizontale
1 500 cm
Hauteur sous crochet - flèche inclinée
1 500 cm
Modèle de grue
Potence hydraulique
Couleur d'origine
original
Fabricant Moteur
original
Dimensions du volume de transport (L x l x H)
13960 x 2650 x 2700 mm
Type de transporteur
À roues
Informations / condition de Garantie
1 year
État neuf pneus avant
98%
État neuf pneus arrière
2
Conditions de livraison
FCA, FOB, CIF, EXW
Certificats
EPA, CE
Autres accessoires
Fly Jib ,Hook ,Counter Weight, ETC.
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Nina
Whatsapp: +86 18055199047
Mobile:+86 18055199047
Wechat:18055199047
Email:
Fly Jib ,Hook ,Counter Weight, ETC.
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessoires
Crochets de levage
Autres informations
Lifting Performance
Maximum lifting torque: 3557kN・m
Maximum lifting torque of basic boom: 3557kN・m (60.5t×6m)
Maximum lifting capacity of fully extended main boom: 13.2t
Maximum lifting radius of main boom: 52m
Lifting torque of longest main boom + jib: 1266kN・m
Speed Parameters
Maximum single-rope speed of main hoist (no-load): 135m/min
Maximum single-rope speed of auxiliary hoist (no-load): 135m/min
Full extension/retraction time of boom: 500/440s
Full lifting/lowering time of boom: 60/90s
Slewing speed: 0~1.5r/min
Dimension Parameters
Overall length of the machine: 14985mm
Overall width of the machine: 3000mm
Overall height of the machine: 3920mm
Outrigger span (transverse × longitudinal): 8.3 (5.55)×6.63m
Power Parameters
Engine model: Yuchai YCK09380-60 (National Ⅵ) or Weichai WP10H375E62 (National Ⅵ)
Maximum power of Yuchai engine: 280kW at 1900rpm
Maximum power of Weichai engine: 276kW at 1900rpm
Maximum output torque of Yuchai engine: 1800N・m at 1100-1450rpm
Maximum output torque of Weichai engine: 1800N・m at 1000-1400rpm
Driving Parameters
Maximum driving speed: 80km/h
Minimum turning radius: 12m
Maximum climbing gradient: 45%
Approach angle: ≥20°
Departure angle: ≥13°
