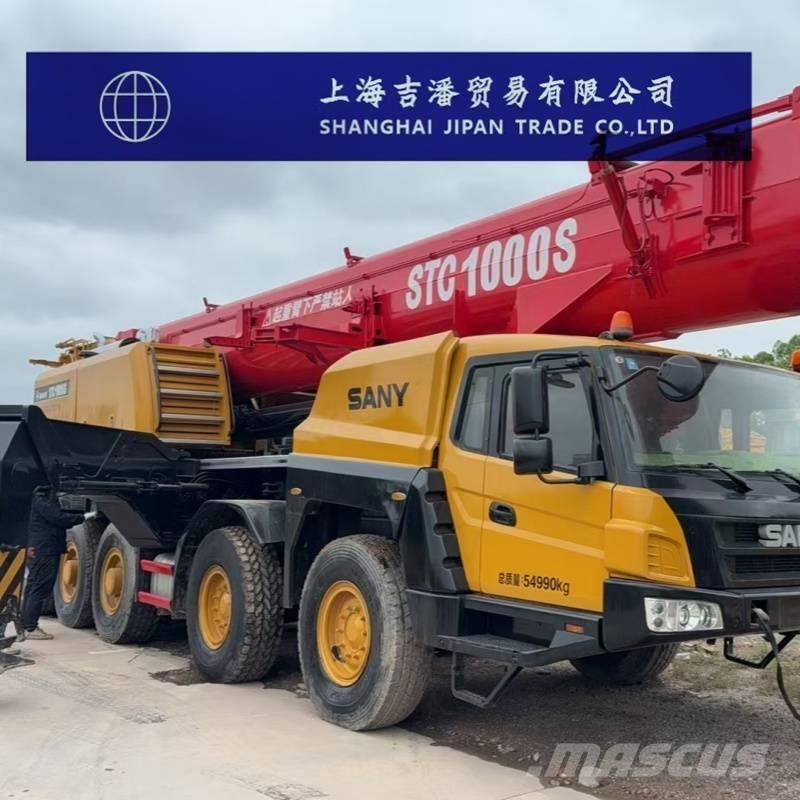

Sany STC 1000 S

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Sany Heavy Industry STC1000S crane Lifting capacity Maximum rated lifting capacity (t) : 100 Maximum rated lifting moment (KN.m) : 4234 Maximum rated lifting moment for fully extended boom (KN.m) : 1852 Maximum lifting height - base boom (m)12.6 Maximum lifting height - fully extended boom (m)63.5 Maximum lifting height - basic boom + auxiliary boom (m)79 Maximum lifting capacity (tons) : 91-180 tons Boom size The basic number of arm segments is 7 The cross-section type of the boom is U-shaped Boom length - base boom (m)12.1 Boom length - fully extended boom (m)63 Boom length - basic boom + auxiliary boom (m)78.5 The installation angles (°) of the auxiliary boom are 0, 15, and 30 Operation speed parameter The maximum lifting speed of the main hoist (m/min) is 145 (no-load) The maximum lifting speed of the auxiliary hoist (m/min) is 123 The full extension time of the boom (seconds) is 500 Boom luffing time (s) Full lifting/lowering time :40/150 seconds Rotational speed (rpm)2 Engine Chassis engine models: Engine ISZ475 30 354kW EuroⅢ, Cummins ISZ480 40 358kW EuroⅣ Rated power (kw/rpm) : 354/1800, 358/1800 The on-board engine is Cummins QSB6.7-C240 178kW NR2 Rated power (kw/rpm)178/2200 Driving parameters Maximum driving speed (km/h) : 85 Minimum turning radius (m) : 9.6 Maximum climbing gradient (%) : 45 Approach Angle/departure Angle (°)21/18 Minimum ground clearance (mm) : 315 Overall machine specification The total length of the entire machine is 14,000 mm The full width of the entire machine (mm) is 3000 The total height of the entire machine (mm) is 4000 Working weight (t) : 54.5 Total counterweight (t)32.5 Outrigger span Vertical × horizontal (m)7.8×7.8
