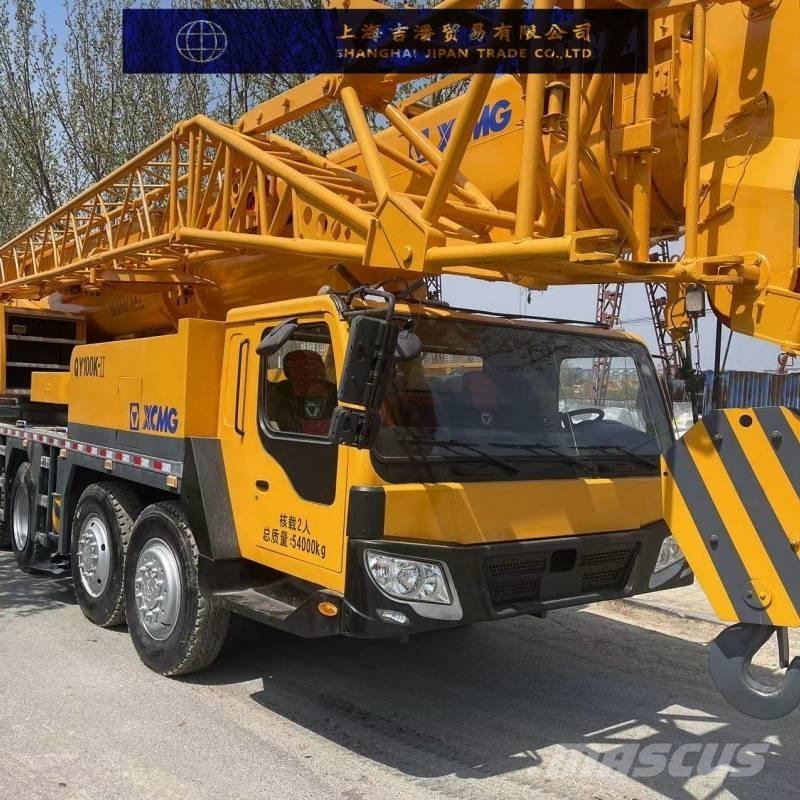

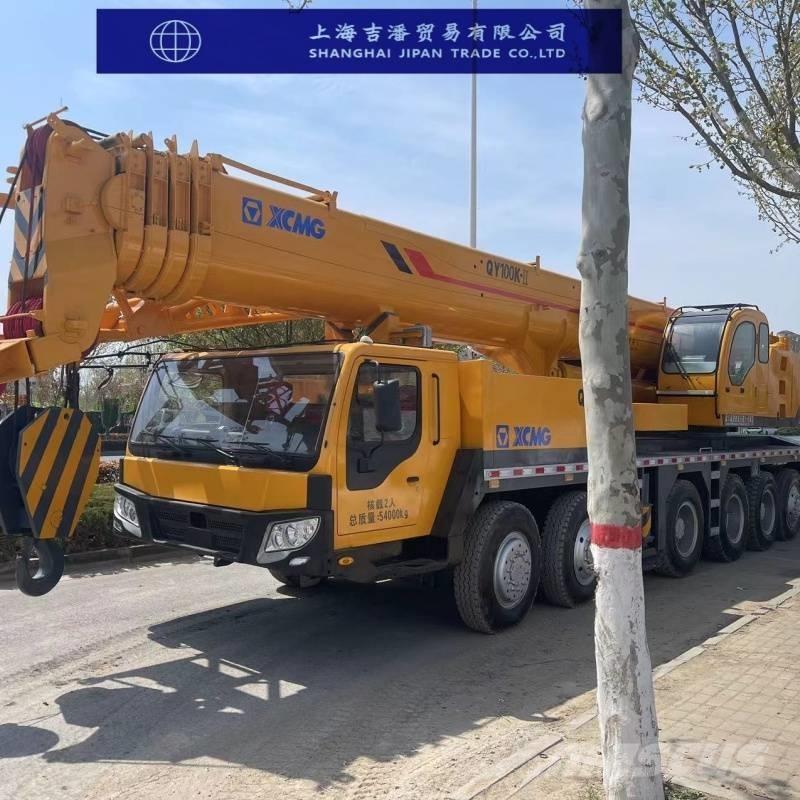

XCMG QY 100 K

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Fly Jib ,Hook ,Counter Weight, ETC. Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Lifting Capacity: The maximum rated lifting weight is 100 tons, the maximum rated lifting moment at full boom extension is 70 (24m × 7.1t) kN·m, and the minimum working radius is 3 meters. Boom Length Parameters: The basic boom length is 12.8 meters, the full extended boom length is 48.8 meters, and the jib length is 18 meters. Driving Parameters: It adopts a 6-axle chassis, with a maximum driving speed of 70 km/h, a minimum turning radius of 12 meters, a ground clearance of approximately 310 mm, an approach angle of 23°, a departure angle of 15°, and a climbing ability of over 40%. Overall Dimensions: The total length of the machine is 15,230 mm, the total width is 3,000 mm, and the total height is 3,860 mm. Outrigger Span: Longitudinal × transverse is 7.56 × 7.6 meters. Engine Parameters: The chassis engine is manufactured by Cummins (USA), model M440E20, with an output power of 324 kW/1800 rpm and a maximum torque of 2100 Nm/1200 rpm. Working Speed Parameters: The boom lifting time is 75 seconds, the full extension/retraction time of the boom is 160 seconds, the maximum slewing speed is 2 m/min, the no-load speed of the main hoisting mechanism is 105 m/min, and the no-load speed of the auxiliary hoisting mechanism is 104 m/min.
