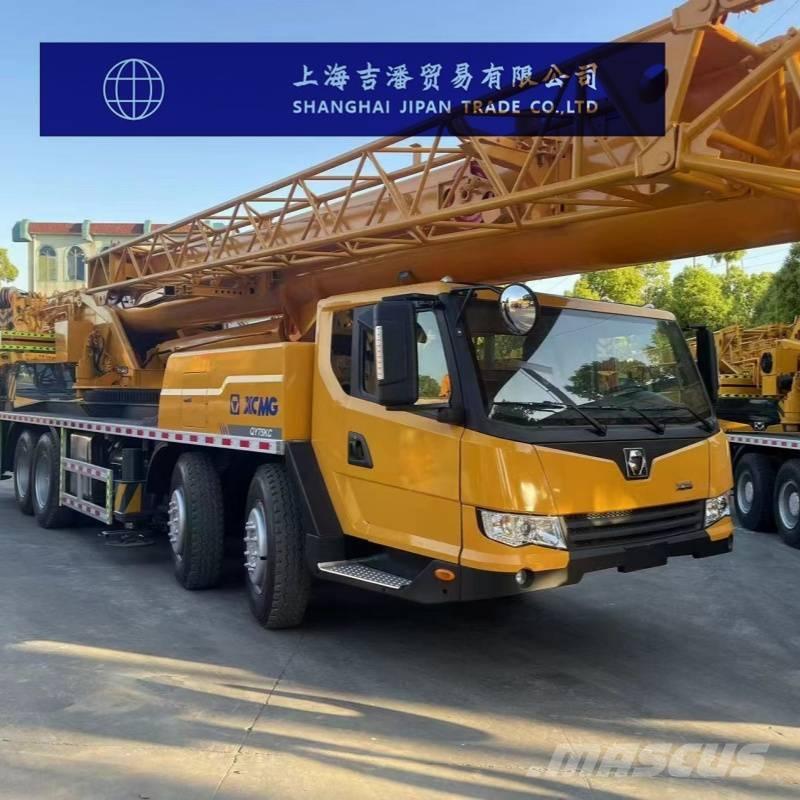

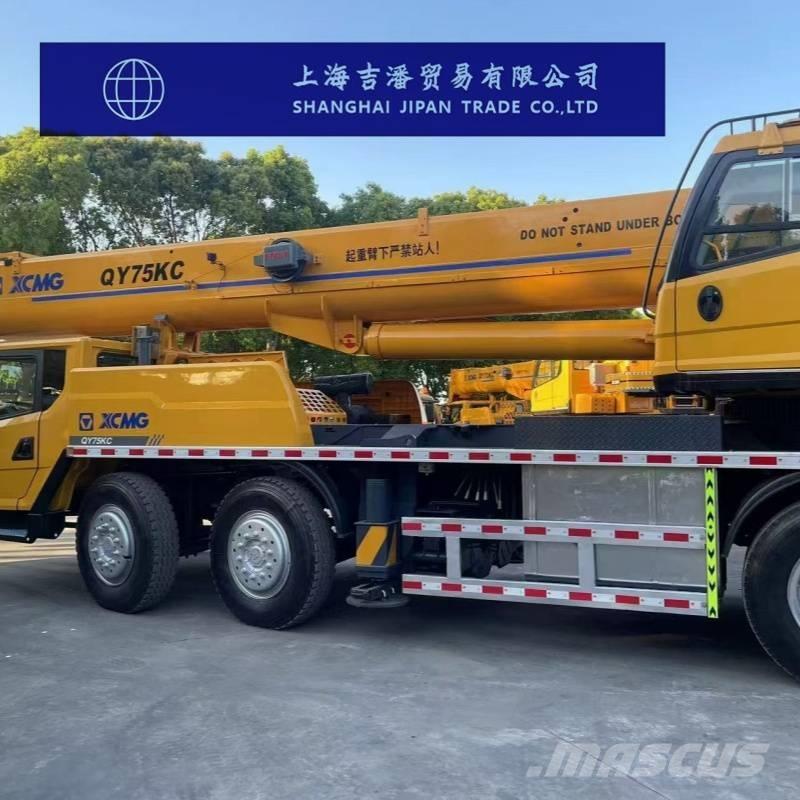

XCMG QY 75 K
Prix (hors TVA)
10
Favoris
Partager
Sauvegarder la rechercheImprimer
INFO
Catégorie
Grues tout terrain
Marque / Modèle
XCMG QY 75 K
Année d'immatriculation
2019
Heures d'utilisation
3 000 h
Pays
Chine
Note globale
1
2
3
4
5
Mascus ID
398BED93
PRIX
Choisir une devise
CARACTÉRISTIQUES
N° de stock
1
Dernière révision
2025-08-29
N° de série
1
Nombre de propriétaires précédents
1
Poids brut
75 000 kg
Max. capacité de levage
75 ton
Numéro d'immatriculation
1
Capacité maximale de levage en bout de flèche
8 ton
Longueur minimale de la flèche
3 m
Catégorie d'émission
Stage V
Longueur de flèche
64,5 m
Flèche de guindant minimale
3 m
Unité de distance
12,6 m
Longueur de flèche
64,5 m
Hauteur de levage
64,5 m
Modèle de grue
Potence fixe
Couleur d'origine
Original
Moteur
75
Fabricant Moteur
Original
Dimensions du volume de transport (L x l x H)
14650 x 2800 x 3880 mm
Type de transporteur
À roues
Informations / condition de Garantie
1 year
Marque de pneu
Original
État neuf pneus avant
98
État neuf pneus arrière
2
Pays de production
Chine
Conditions de livraison
FCA, FOB, CIF, EXW
Certificats
EPA, CE
Autres accessoires
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET
TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET
CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours:24 hours, holidays and Sundays
Contact: Lily
Whatsapp: +86 17756597429
Mobile:+86 17756597429
Wechat:17756597429
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessoires

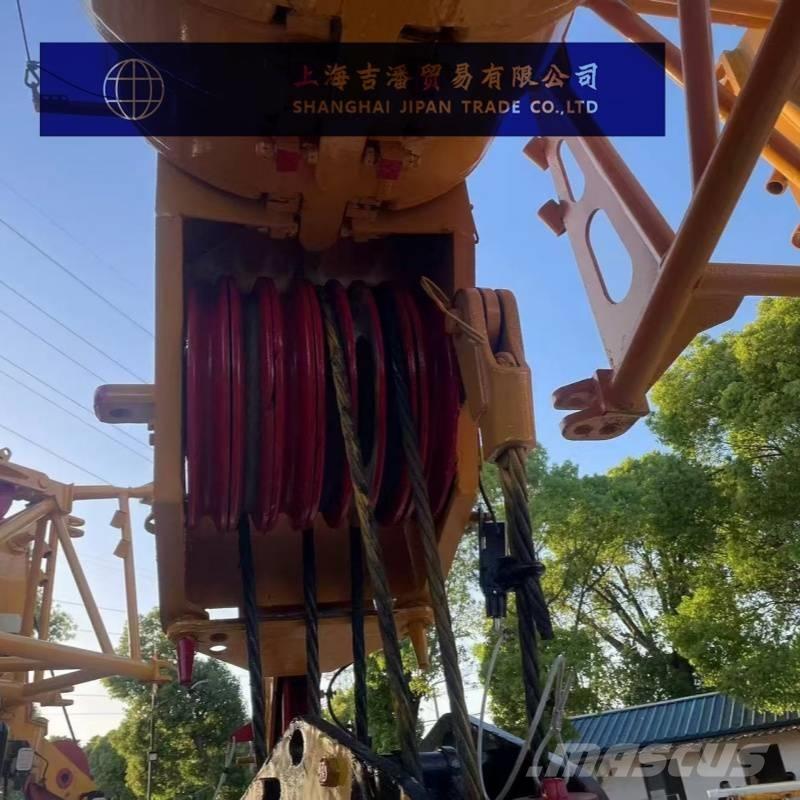

Crochets de levage
Autres informations
XCMG QY75K crane parameter configuration
Lifting capacity
Maximum rated lifting capacity (t) 75
Minimum working range (m) 3
The maximum rated lifting torque (KN.m) is 2969
Maximum lifting height - basic arm (m) 12.6
Maximum lifting height - full reach arm (m) 47
Maximum lifting height - basic arm Jib (m) 64.5
Maximum lifting capacity (tons) 45-90 tons
Maximum lifting capacity (tons) 45-90 tons
Lifting arm size
Lifting arm length - basic arm (m) 12.2
Job speed parameters
The maximum lifting speed of the main winch (m/min) is 75 at full load and 140 at no load
The maximum lifting speed of the sub-winch (m/min) is 98 at full load and 108 at no load
The total extension time of the lifting arm (s) is 110
Luffing time (s) 55 of the lifting arm
Rotational speed (rpm) 1.9
motor
Chassis engine model D10.38A-40
Rated power (kw/rpm) 276/2200
Driving parameters
The maximum travel speed (km/h) is 80
Minimum turning radius (m) 10
Maximum climb (%) 37
Approach/departure angle (°) 19/15
Minimum ground clearance (mm) 427
Specifications of the whole machine
The total length of the whole machine (mm) is 14650
The overall width of the whole machine (mm) is 2800
The overall height of the whole machine (mm) is 3880
Total counterweight (t) 48
Wheelbase (mm) 1500 4665 1500
Outrigger span
Longitudinal × horizontal (m) 6.4×7.6
