INFO

Catégorie
Mini pelle < 7t
Marque / Modèle

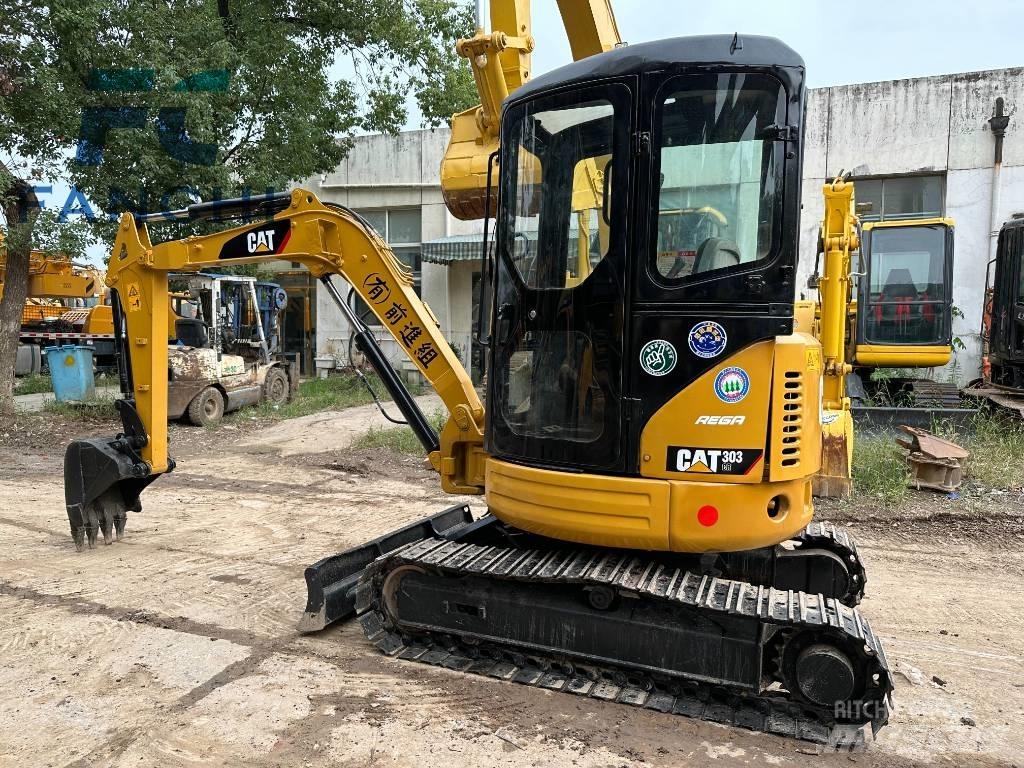

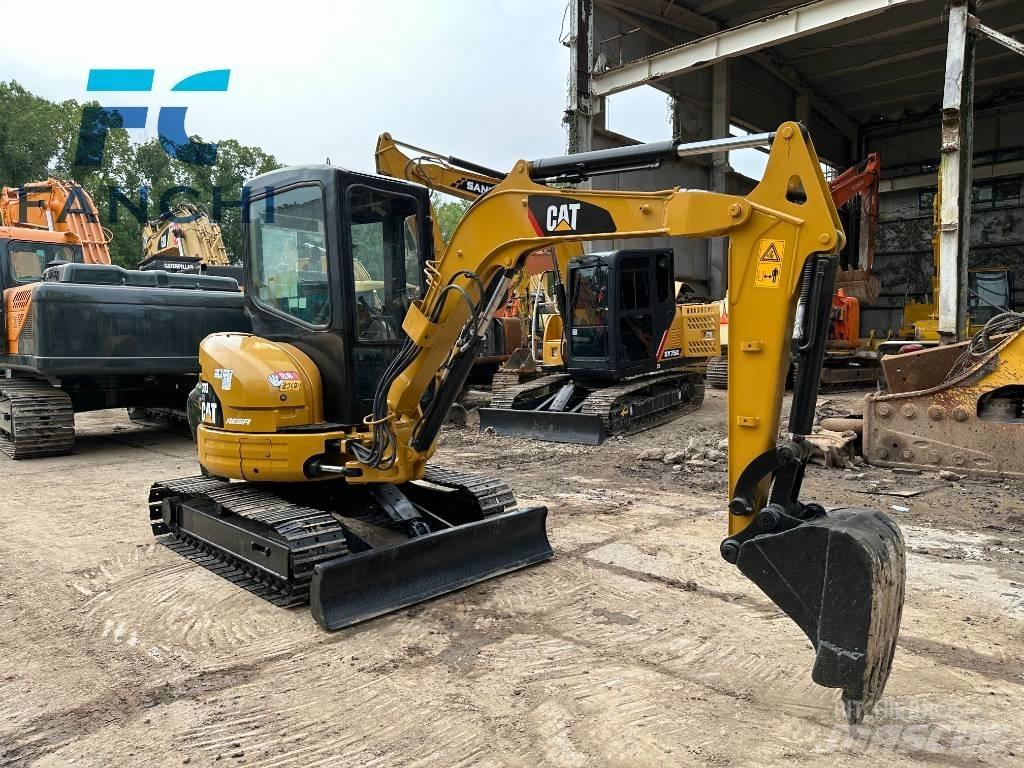

CAT 303 CR
Année d'immatriculation
2023
Heures d'utilisation
400 h
Etat / condition
Remis à neuf
Pays
Chine
Note globale
1
2
3
4
5
Mascus ID
A2D0DB59

PRIX

Choisir une devise

CARACTÉRISTIQUES

Type
Diesel
Nombre de propriétaires précédents
1
Condition du train de roulement
good
Poids brut
3 548 kg
Rendement des autres appareils hydrauliques
66 l/mn
Catégorie d'émission
Phase V / Niveau IV Final
Largeur de chenille
300 mm
Capacité du godet
0,12 m3
Dimensions du volume de transport (L x l x H)
473017802.5 m
Couleur d'origine
YELLOW

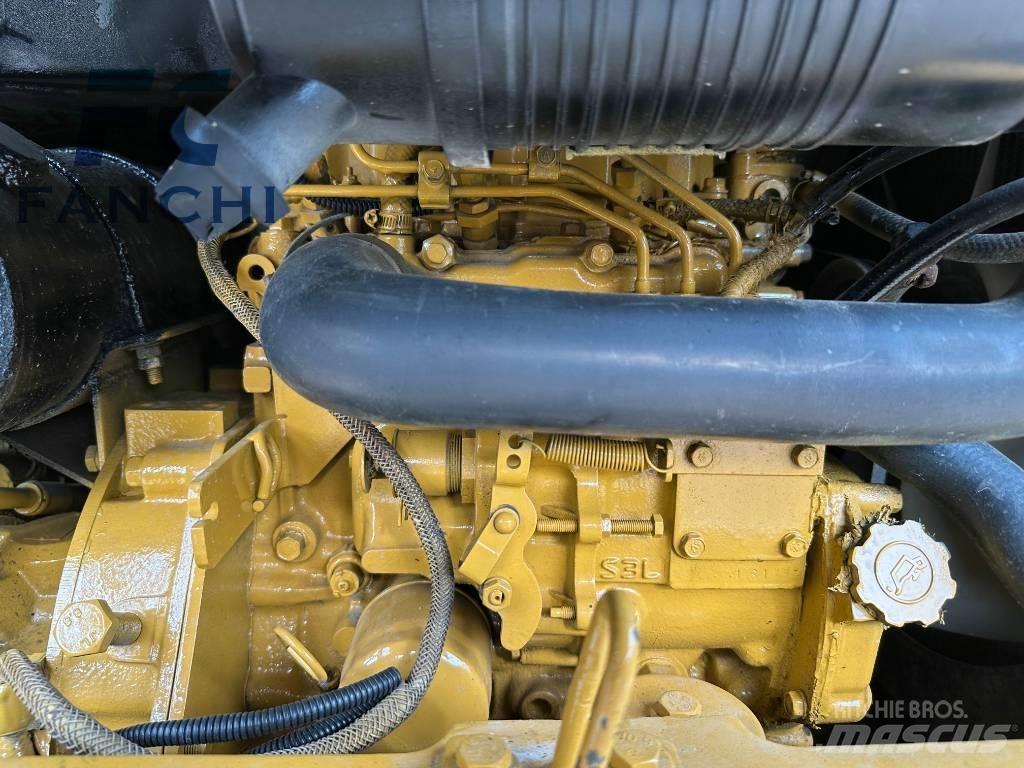

Moteur
Cat C1.8
Rendement moteur
23,6 kW (32,1 CV)
Fabricant Moteur
japan
Marque de pneu
original
Informations / condition de Garantie
good
Pays de production
Japon
Conditions de livraison
FOB, CIF, EXW
Certificats
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, Certificat ASME
Autres accessoires
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Accessoires
Attache rapide manuelle
marteau/ circuit hydraulique
Climatisation
Préchauffe carburant
Plus de critères
Autres informations
The following are some parameters of the Caterpillar CAT303.5CR excavator: - **Overall Dimensions of the Machine** - Total transportation length: 4730mm, total transportation width: 1780mm, total transportation height: 2500mm. - Track shoe width: 300mm, track ground contact length: 2220mm. - Rear swing radius: 890mm. - **Operating Weight and Capacity** - The operating weight of the whole machine is approximately 3548 - 3770kg. - Bucket capacity: 0.12m³. - Fuel tank capacity: 46L, hydraulic oil tank capacity: 42.3L, engine oil change volume: 7L, coolant volume: 5.5L. - **Performance Parameters** - Engine model: Cat C1.8, rated power: 23.6kW. - Travel speed (high/low): 4.6/2.6 km/h, swing speed: 9rpm. - Bucket digging force: 33kN, stick digging force: 18.9kN. - Maximum drawbar pull: 31kN. - **Working Range** - Maximum digging radius: 5200mm, maximum digging radius at the ground level: 5060mm. - Maximum digging depth: 2880mm, maximum vertical digging depth: 2320mm. - Maximum digging height: 5030mm, maximum unloading height: 3640mm.Plus de critères

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 Chine
