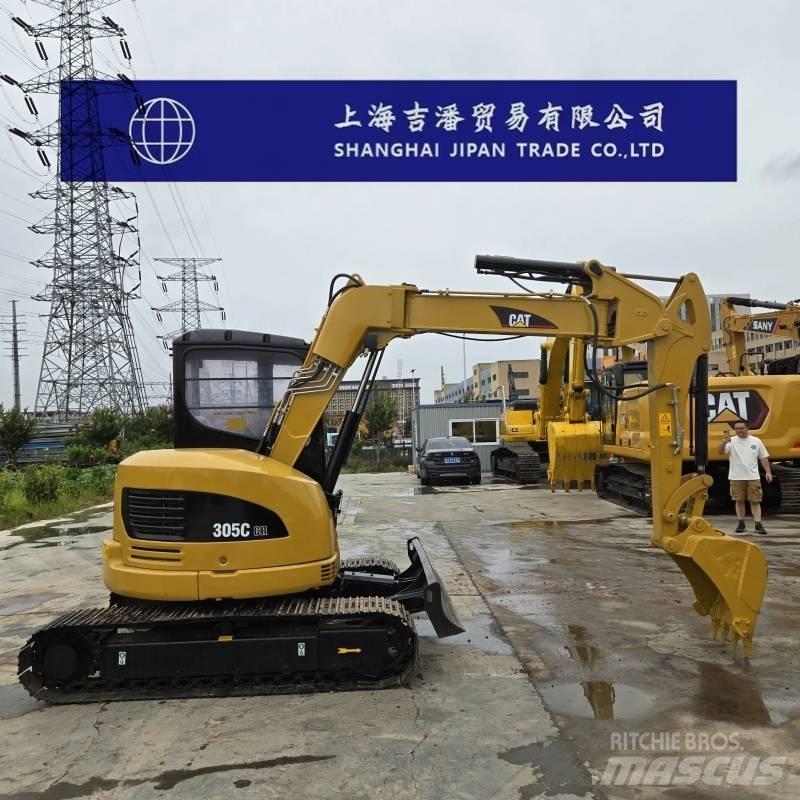

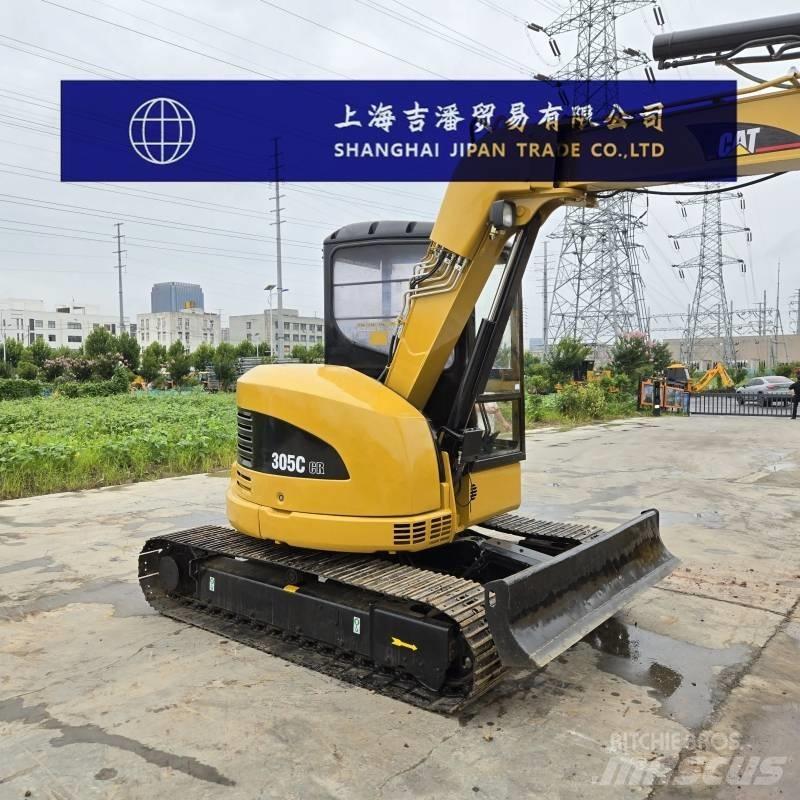

CAT 305C

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

卡特彼勒CAT@305小型液压挖掘机 参数配置 规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)5 整机工作重量(kg)5400 铲斗宽度(mm)766.0 铲斗容量(m³)0.22 动臂长度(mm)3200.0 斗杆长度(mm)1500.0 性能 回转速度(rpm)10.5 min-1 回转扭矩(Nm)13.9 N·m 行走速度(km/h)4.3/2.8 爬坡能力(%)50 铲斗挖掘力(kN)35.0 斗杆挖掘力(kN)27.2 最大牵引力(kN)40.2 动力系统 发动机型号Cat C2.4 DI 额定功率(kw/rpm)34.1 排量(L)2.4 缸径×行程(mm)87.0*102.4 液压系统 主泵类型配备可变排量活塞泵的负载感应液压系统 主泵最大流量(l/min)140.0 油类容量 燃油箱(L)78 液压油箱(L)58 液压系统(L)85 发动机油更换量(L)9.5 冷却液(L )9.8 主体尺寸 运输总长度(mm)5765.0 运输总宽度(mm)1950.0 运输总高度(mm)2540.0 履带总长度(mm)2440.0 履带板宽度(mm)400.0 履带轨距(mm)1550.0 最小离地间隙(mm )628.0 支重轮中心间距(mm)1920.0 后端回转半径(mm )1580.0 作业范围 最大挖掘半径(mm)5955.0 停机面最大挖掘半径(mm)5830.0 最大挖掘深度(mm)3720.0 最大挖掘高度(mm)5460.0 最大卸载高度(mm)3835.0 最大垂直挖掘深度(mm)2210.0 推土板宽度×高度(mm)1950.0*360.0 推土铲举升或推深(mm)365.0/480.0
