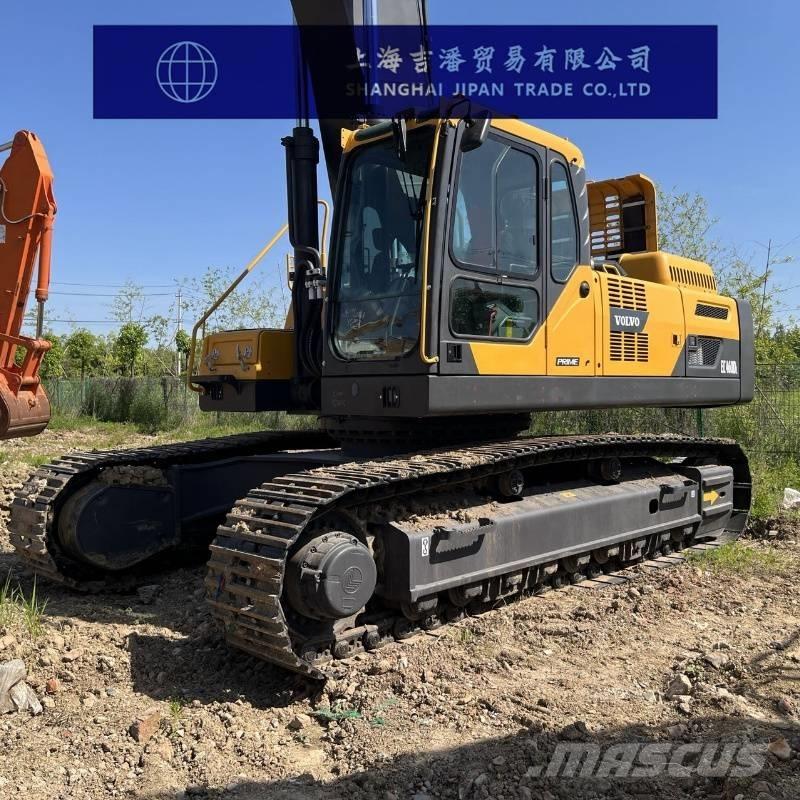

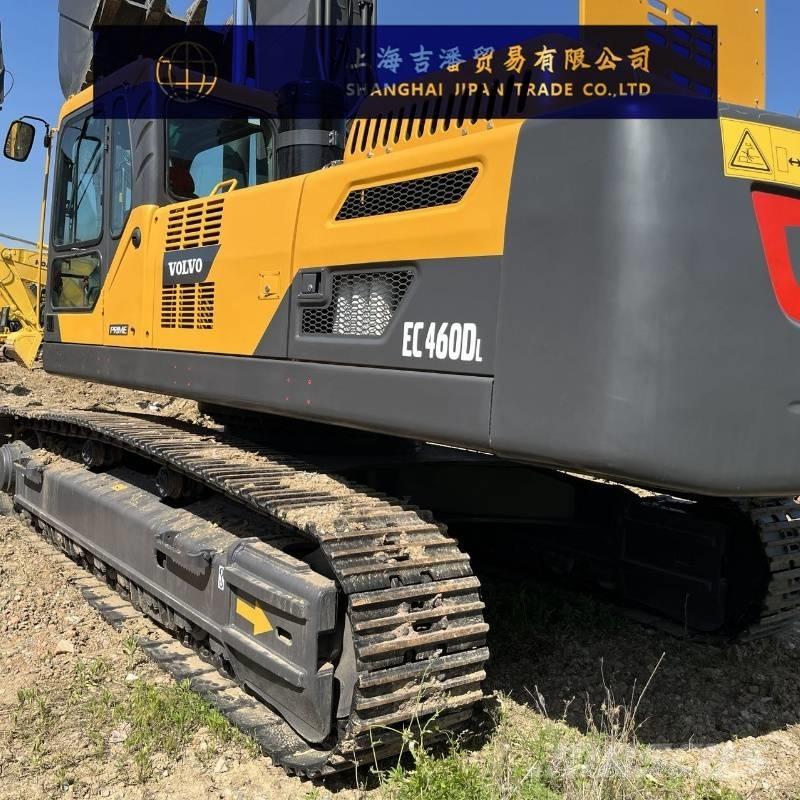

Volvo EC 460
Prix (hors TVA)
Imprimer
INFO
Catégorie
Pelle sur chenilles
Marque / Modèle
Volvo EC 460
Année d'immatriculation
2022
Heures d'utilisation
1 865 h
Pays
Chine
Note globale
1
2
3
4
5
Mascus ID
D036B1D2
PRIX
Choisir une devise
CARACTÉRISTIQUES
Type
Diesel
Nombre de propriétaires précédents
1
Dernière révision
2025-08-19
Condition du train de roulement
98%
Moteur
original
Poids brut
44 500 kg
Rendement moteur
245 kW (333 CV)
Fabricant Moteur
original
Catégorie d'émission
Stage V
Capacité du godet
3,73 m3
Largeur de chenille
600 mm
Dimensions du volume de transport (L x l x H)
12070 x 3340 x 3650 mm
Couleur d'origine
original
Informations / condition de Garantie
1 year
Conditions de livraison
FCA, FOB, CIF, EXW
Certificats
EPA, CE
Autres accessoires
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Nina
Whatsapp: +86 18055199047
Mobile:+86 18055199047
Wechat:18055199047
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs
Accessoires
Climatisation
Seau squelette
Commande joystick
Godet rétro standard
Contrôle de profondeur
Autres informations
Basic Parameters
Operating Weight: 44,500 kg
Bucket Capacity: 1.8–3.73 m³
Boom Length: 7,000 mm
Stick Length: 3,350 mm
Performance Parameters
Swing Speed: 8.5 rpm
Travel Speed: 2.9/4.8 Km/h
Gradeability: 70%
Ground Pressure: 77.5 Kpa
Bucket Digging Force: 253.0 kN (standard) / 276.5 kN (boost)
Stick Digging Force: 195.1 kN (standard) / 213.8 kN (boost)
Engine Parameters
Engine Model: Volvo D12D
Rated Power: 245 kW / 1,800 rpm
Displacement: 12.1 L
Number of Cylinders: 6
Bore × Stroke: 131 × 150 mm
Cooling System: Water-cooled
Hydraulic System Parameters
Main Pump Type: Variable displacement axial piston pump × 2 + Gear pump
Max Flow of Main Pump: 345 × 2 + 31 L/min
Working Hydraulic Circuit Pressure: 31.4/34.3 Mpa
Travel Hydraulic Circuit Pressure: 31.4 Mpa
Swing Hydraulic Circuit Pressure: 24.5 Mpa
Control Hydraulic Circuit Pressure: 3.9 Mpa
Boom Cylinder: 2–165 × 1,590 mm
Stick Cylinder: 1–190 × 1,850 mm
Bucket Cylinder: 1–165 × 1,335 mm
Fluid Capacity Parameters
Fuel Tank: 685 L
Hydraulic Oil Tank: 270 L
Hydraulic System: 525 L
Engine Oil Change Capacity: 42 L
Coolant: 60 L
Dimensions Parameters
Overall Transport Length: 12,070 mm
Overall Transport Width: 3,340 mm
Overall Transport Height: 3,650 mm
Cab Height: 3,250 mm
Counterweight Ground Clearance: 1,275 mm
Track Contact Length: 4,370 mm
Total Track Length: 5,370 mm
Track Shoe Width: 600 mm
Total Track Width: 3,340 mm
Track Gauge: 2,740 mm
Minimum Ground Clearance: 550 mm
Minimum Swing Radius of Front Attachment: 5,090 mm
Rear Swing Radius: 3,730 mm
Working Range Parameters
Max Digging Radius: 12,000 mm
Max Digging Radius at Ground Level: 11,780 mm
Max Digging Depth: 7,700 mm
Max Digging Height: 10,970 mm
Max Dumping Height: 7,650 mm
Max Vertical Digging Depth: 6,840 mm
Max Digging Depth at 2.5m Horizontal Reach: 7,550 mm
