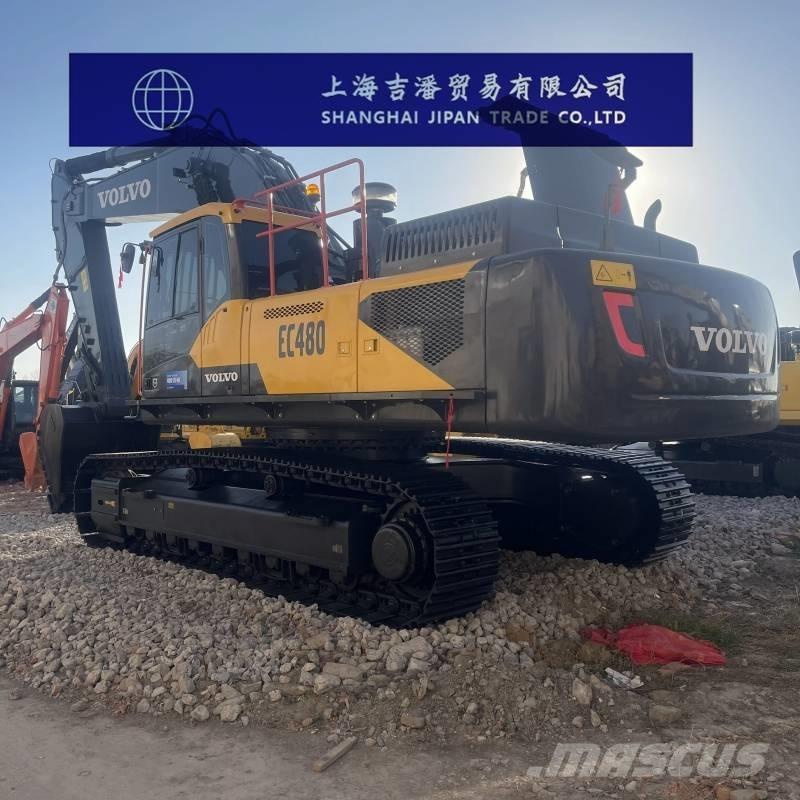

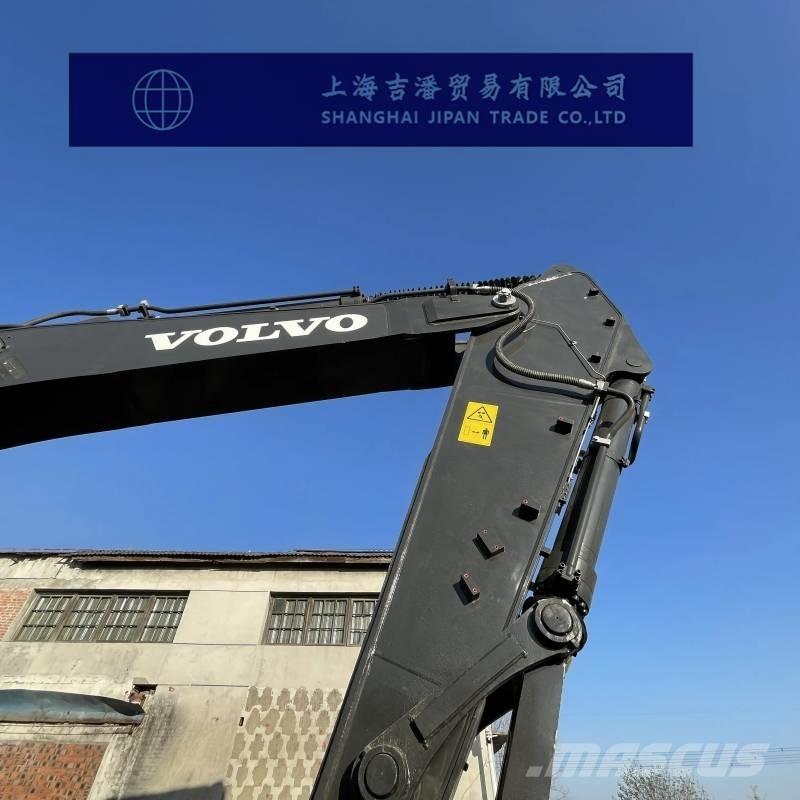

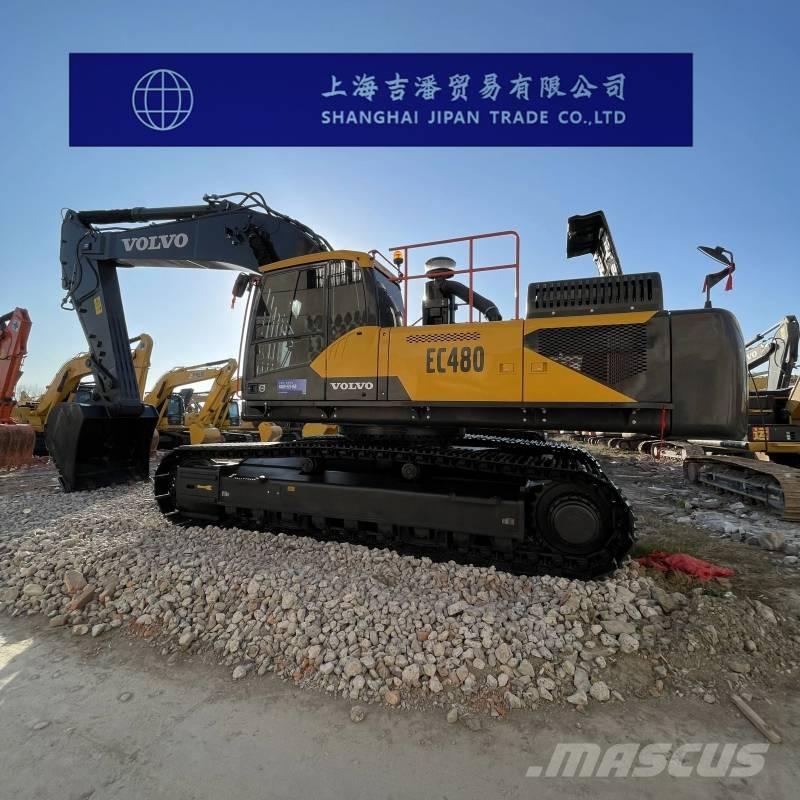

Volvo EC 480

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method:Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.

Specification Tonnage (tons):48 The working weight of the whole machine (kg) is 47,300 to 53,100 Bucket capacity (m³):1.77-3.8 Performance Rotational speed (rpm)8.8 Rotational torque (Nm)166.3 Walking speed (km/h):3.1/5.1 Maximum traction force (kN)330 Power system Engine model D13F Rated power (kw/rpm)270/1800 Maximum torque (N.m)1800/1400 Displacement (L)12.8 Number of cylinders:6 units Bore × stroke (mm):131×158 Hydraulic system The maximum flow rate of the main pump (l/min) is 2 x 358 Pilot pump flow rate (L/min)1 x 32 Pilot oil circuit (MPa)3.9 Walking hydraulic circuit (Mpa)32.4 Rotary hydraulic circuit (Mpa)25.8 Boom cylinder - Number × Cylinder bore × Stroke (mm)2*165 X 1,590 Bucket rod cylinder - Number × Cylinder diameter × Stroke (mm)1*190 x 1,850 Bucket cylinder - Number × Cylinder diameter × Stroke (mm)1*165 x 1,330 Oil capacity Fuel tank (L)685 Hydraulic oil tank (L)270 Hydraulic System (L)520 Engine oil change rate (L)42 Coolant (L)60 Main body size Total transportation length (mm):11630 Total transportation width (mm):3340 The total height of the cab (mm) is 3257 The width of the vehicle (mm) is 2990 Track grounding length (mm):4370 The total length of the track (mm) is 5370 Track plate width (mm):600 Track gauge (mm):2740 Counterweight ground clearance (mm):1275 Minimum ground clearance (mm):550 The rear end rotation radius (mm) is 3880 Number of sprocket rollers (single side):(pieces)2 Number of track plates (single side):(pieces)52 Number of supporting wheels (single side):(pieces)9 Scope of work Maximum excavation radius (mm):10,930 The maximum excavation radius (mm) of the shutdown surface is 10680 Maximum excavation depth (mm):6580 Maximum excavation height (mm):10,600 Maximum unloading height (mm):6970 The maximum vertical excavation depth (mm) is 5990
