Hyster H 20 XD 9
Prix (hors TVA)
Prix non renseigné
Imprimer
INFO
Catégorie
Chariots diesel
Marque / Modèle
Hyster H 20 XD 9
Année d'immatriculation
2024
Heures d'utilisation
5 h
Etat / condition
Neuf
Emplacement
Barneveld, Gelderland
Pays
Pays-Bas
Note globale
1
2
3
4
5
Mascus ID
EFFC882F
CARACTÉRISTIQUES
Nombre de roues
6
Dernière révision
2024-09-02
Max. capacité de levage
20 000 kg
Hauteur de levage
3 750 mm
Levée libre
3 780 mm
Mât de levage
Duplex
Marque de pneu
Trelleborg
Type de pneu
Pneumatique
Longueur de fourche
2 440 mm
Cabine
Fermé
Transmission
automaat
Moteur
Mercedes
Rendement moteur
180 kW (245 CV)
Fabricant Moteur
Mercedes
État neuf pneus avant
100
État neuf pneus arrière
100
Taille du pneu avant
14.00-24
Taille des pneus arrière
14.00-24
Pays de production
Pays-Bas
Nb de roues directrices
2
Nb de roues motrices
2
Certificats
CE
Accessoires
Toit ouvrant
Chauffage
Documents
Autres informations

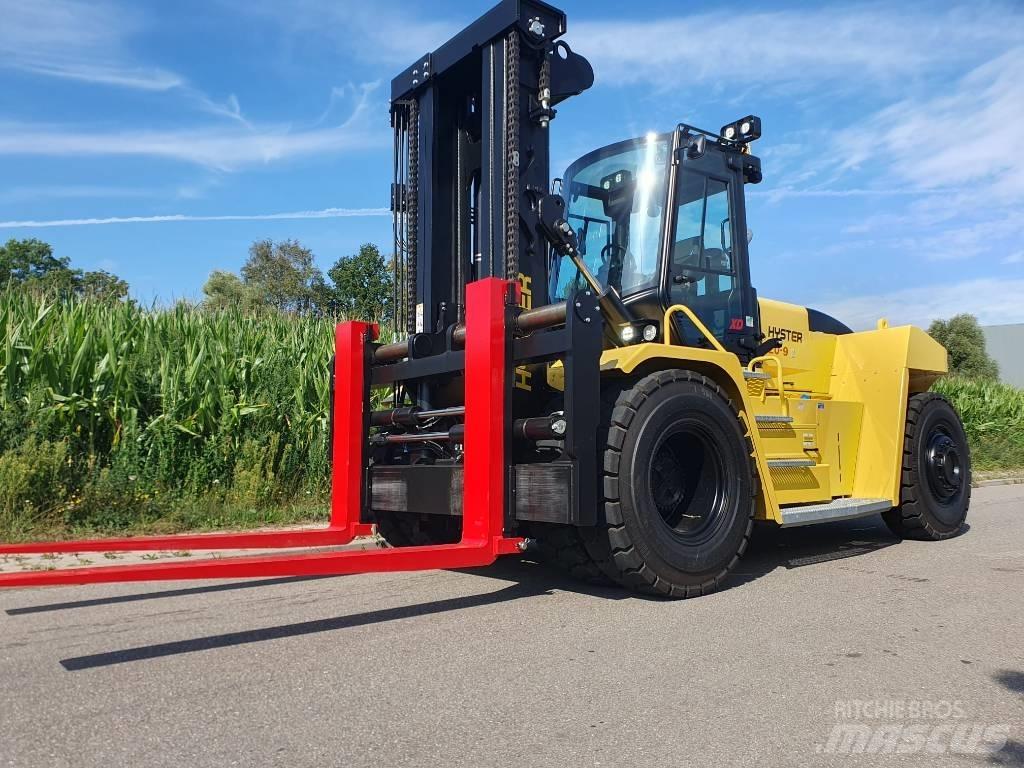

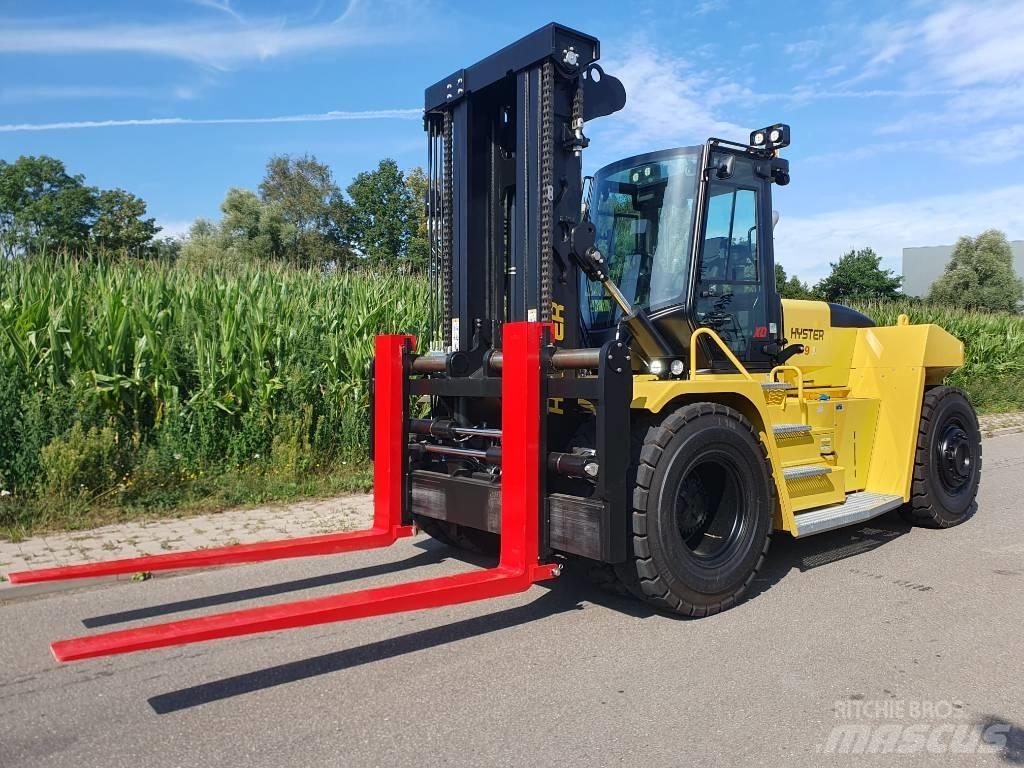

Hyster® H20XD9 High Capacity Forklift Truck: 20,000 kg Nominal Capacity @ 900 mm Load Center /
3,750 mm Wheelbase
Truck Start -- Key switch with start button -- Without Seatbelt Interlock

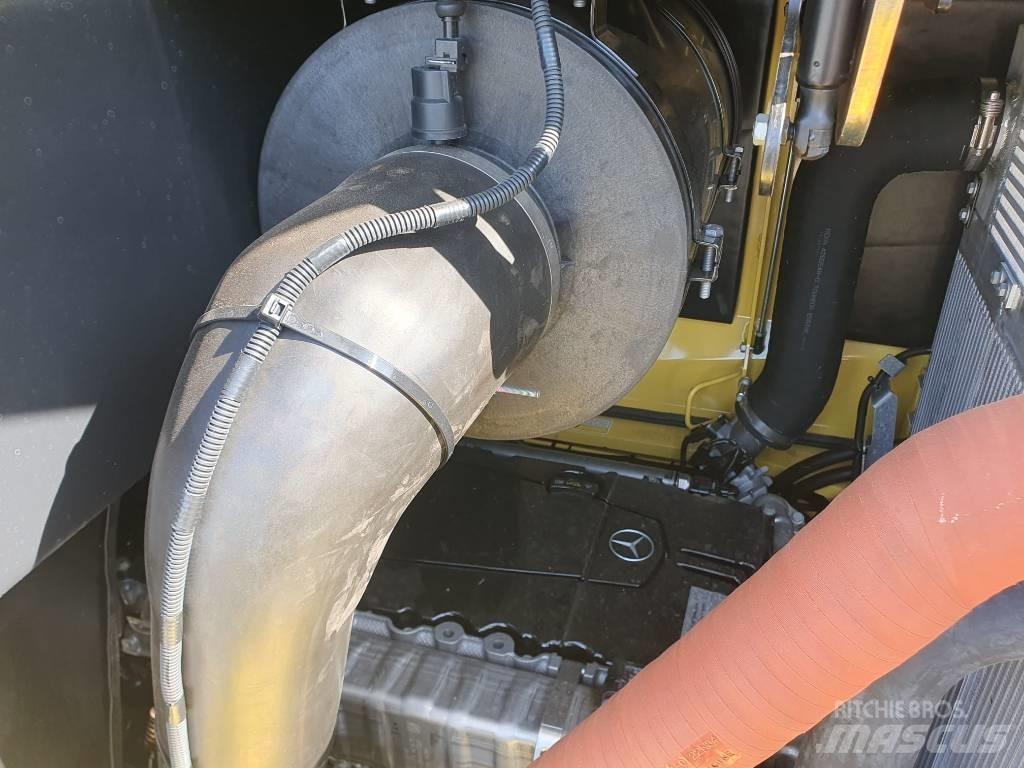

Mercedes 6R1000 7.7L Stage V Diesel Engine: Rated Power 180 kW @ 2200 rpm
Oil-immersed Wet Disc Brakes
ZF WG211 5-Speed Transmission with 5 Speeds Forward and 3 Speeds Reverse
CE Certification
Coolant Level Warning on Display
Engine Oil level on Display and Dipstick
Fuel Cap - Non-lockable
Delayed Engine Shutdown for Turbo Cooldown
2 Stage Non Free Lift Mast - 3750mm Maximum Lift Height - 3780mm Overall Lowered Height
Mast Tilt - 10° Forward / 12° Back
2940mm Quick Disconnect Hook Type Dual Function Sideshift Carriage with Simultaneous and
Individual Fork Positioner
2440mm Long x 100mm Thick x 250mm Wide - Hook Type Forks with Standard Taper
Pressure Compensated Lowering
6 Function (4 Auxiliary) Hydraulic Valve
Hydraulics controlled by 4 Levers and 2 Rocker Switches - Not For Clamping Attachments
4 Auxiliary Function Hose Group - 3 Hoses and 1 Wire Cable Externally Mounted - Includes Selector
Valve
Pneumatic Bias Ply Drive Tyres / 14.00-24 24PR
Pneumatic Bias Ply Steer Tyres / 14.00-24 24PR
Enclosed Operator Cabin with Air Conditioning and Automatic Climate Control
Top Window with Armored Glass
2 External Wide Angle Mirrors mounted on Cab Handrail
Digital 7" Display
I-Type Single Blade Wiper on Front Window
Armrest on Left Side
Electronic Horn 105 db(A)
Interior Dome Light
Manual Tilt Operator Compartment for Service Access
Sun Roller Screens for Rear and Top Window
Forward-Neutral-Reverse Directional Control on Armrest
Steering Wheel with Spinner Knob
Park Brake -- Automatic
Air Ride Full Suspension Vinyl Seat
Seatbelt - 2-Point High-Visibility
High and Adjustable Seat Backrest
Hyster Tracker Wireless Monitoring - EMEA
2 LED Work Lights Mast Mounted Front / 2 LED Cab Mounted Rear / 2 LED Drive Lights Front Fenders
/ 2 LED Rearward Cluster with Stop, Tail and Reverse Lights / Directional Lights on Front Fender and
Rear Cluster
Audible Alarm - Reverse Direction Activated - Self-Adjusting 82-102 dB(A)
Amber Strobe Light - Ignition and Switch Activated
24 Months / 4000 Hours Manufacturer's Warranty
Gebri Handel & Verhuur
Stavorenweg 3 3771 NK Barneveld Gelderland Pays-Bas
